Schneider Electric

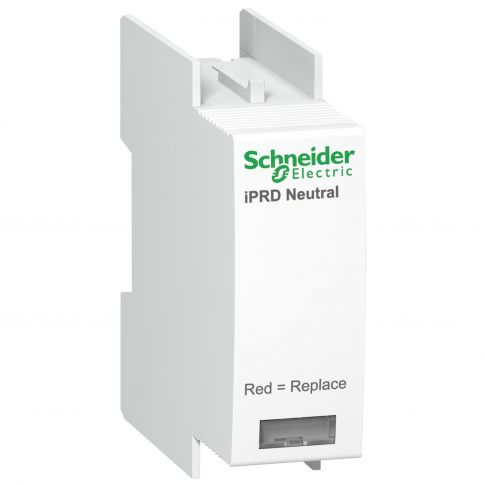

Acti 9 iPRD cartridge C neutral-350 for surge arrester iPRD - A9L00002
Out of stock
SKU
A9L00002
More Information
| Attribute | Value |
|---|---|
| SKU | A9L00002 |
| product certifications | CE |
| relative humidity | 5-90 % |
| ambient air temperature for storage | -40-85 °C |
| ambient air temperature for operation | -25-60 °C |
| range of product | iPRD |
| product or component type | Surge Arrester |
| net weight | 0.044 kg |
| mounting mode | plug-in |
| standards | IEC 61643-11: 2011, EN 61643-11 |
| device short name | C neutral-350 |
| range | Acti 9 |
| surge arrester class type | type 2 |
| maximum discharge current | 65 kA |
| surge arrester type | electrical distribution network |
| height | 57 mm |
| mounting support | into SPD module |
| width | 18 mm |
| depth | 56 mm |
| operating altitude | 0...2000 m |
| IP degree of protection | IP20 front face: |
| 9 mm pitches | 2 |
| colour | white (RAL 9003) |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| surge arrester technology | GDT |
| local signalling | white/red flag |
| response time | < 100 ns |
| maximum [Up] voltage protection level | <1.4 kV type 2 |
| nominal discharge current | 20 kA |
| earthing system | TT, TN |
| [Uc] maximum continuous operating voltage | 260 V |
| material | PBT (polybutylene terephthalate) |
