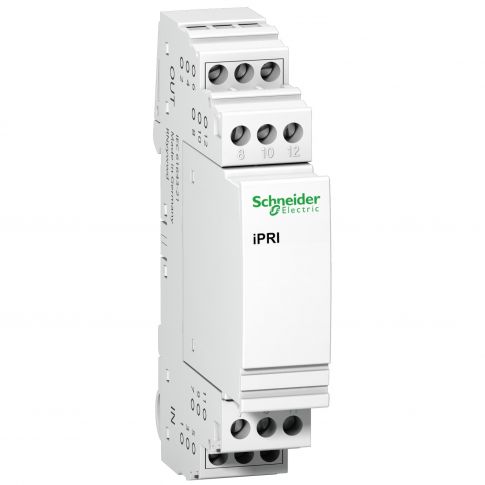

Acti 9 iPRI signal protection - 4 poles - 0.3A - 48 V - A9L16339
This Acti9 iPRI is a surge arrester protecting against overvoltage related to lightning strikes.
It is an analogue telephone line protection.
The iPRC surge arrester wired in series to the private installation input protects telephones, modems.
The Uc maximum continuous operating voltage in common mode (between phase and earth) is 37 VAC or 53VDC.
The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 37VAC or 53VDC.
The Up Voltage protection level is 70V in differential mode (between phase and neutral) and in common mode (between phase and earth).
The Ue rated operational voltage is 48VDC +/- 10%.
The product colour is white (RAL9003).The dimensions are (W) 18mm x (H) 90mm x (D) 66mm.
The weight is 65g.
The degree of protection is IP20 and IP40 in modular enclosure.
The operating temperature is -25°C to 60°C.
The storage temperature is -40°C to 85°C.
| Attribute | Value |
|---|---|
| SKU | A9L16339 |
| relative humidity | 5-90 % |
| ambient air temperature for storage | -40-85 °C |
| ambient air temperature for operation | -25-60 °C |
| range of product | iPRI |
| product or component type | Surge Arrester |
| net weight | 65 g |
| mounting mode | fixed |
| standards | IEC 61643-21, EN 61643-21 |
| device short name | iPRI |
| range | Acti 9 |
| wire stripping length | 8 mm |
| IK degree of protection | IK05 conforming to IEC 62262 |
| product name | Acti 9 iPRI |
| surge arrester type | signal protection |
| [I total] discharge current | 20 kA |
| connections - terminals | screw clamp terminal0.2-4 mm² rigid, screw clamp terminal0.2-2.5 mm² flexible, screw clamp terminal0.2-2.5 mm² flexible with ferrule |
| height | 90 mm |
| output voltage limits | common mode: < 70 V at 1 kV/µs |
| mounting support | 35 mm symmetrical DIN rail |
| compatibility code | iPRI |
| width | 18 mm |
| depth | 66 mm |
| operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529 |
| [In] rated current | 0.3 A at 45 °C |
| 9 mm pitches | 2 |
| colour | white |
| tightening torque | 0.8-0.8 N.m |
| [Ue] rated operational voltage | 48 V DC |
| surge arrester technology | GDT |
| local signalling | electrical |
| response time | < 1 ns |
| maximum [Up] voltage protection level | common mode <70 V type 2 L/PE, differential mode <70 V type 2 L/N |
| nominal discharge current | common mode: 20 kA (L/PE) |
| [Uc] maximum continuous operating voltage | common mode: 37 V AC L/PE, common mode: 53 V DC L/PE, differential mode: 37 V AC L/N, differential mode: 53 V DC L/N |
| material | PA6 |
| remote signalling | without |
| [Iimp] impulse current | 70 A |
| number of protected lines | 4 |
