Schneider Electric

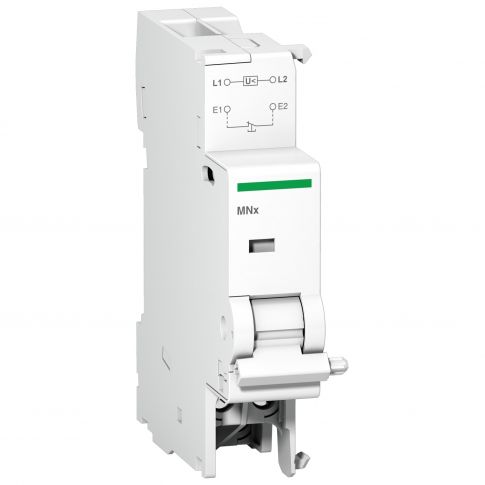

Acti 9 - Voltage release MNx 380-415Vac dc - A9N26971
Out of stock
SKU
A9N26971
More Information
| Attribute | Value |
|---|---|
| SKU | A9N26971 |
| product certifications | ASEFA, ASTA, LCIE, KEMA |
| relative humidity | 95-95 % at 55-55 °C |
| ambient air temperature for storage | -40-85 °C |
| ambient air temperature for operation | -25-50 °C |
| range of product | C60, C120, ID, DPN, DPN Vigi, Clario, Librio, ProDis |
| product or component type | Miniature Circuit Breaker |
| net weight | 73 g |
| mounting mode | fixed |
| standards | EN/IEC 60947-5-1 |
| tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| device short name | MNx |
| range | Aksesoris |
| wire stripping length | 9 mm for bottom connection |
| product compatibility | iDPN, IDc, C60, DT60, DT40, DPN Vigi, ID C40, C40, ITG40, C120 |
| [Uc] control circuit voltage | 400 V AC 50/60 Hz |
| range compatibility | Acti 9 C40, Acti 9 C120, Acti 9 DT60, Acti 9 iDPN, Acti 9 C60H-DC, Acti 9 C60NA-DC, Acti 9 C60PV-DC, Acti 9 DPN Vigi, Acti 9 DT40, Acti 9 ID C40, Acti 9 IDc, Acti 9 ITG40, Acti 9 ID, Acti 9 DPN |
| connections - terminals | screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid |
| height | 82.5 mm |
| mounting support | 35 mm symmetrical DIN rail |
| compatibility code | MNx |
| width | 18 mm |
| depth | 73.5 mm |
| 9 mm pitches | 2 |
| colour | white |
| tightening torque | 1-1 N.m bottom |
| control type | with external feeding |
| local signalling | action indicator |
| market segment | small commercial, residential |
