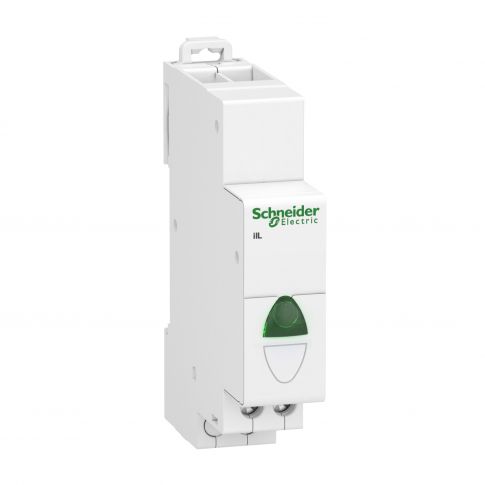

Acti9 iIL single indicator light - Green - 110-230 Vac - A9E18321
This Acti 9 iIL is a single-phase voltage presence indicator light.
The voltage is 110VAC to 230VAC or 110VDC to 130VDC.
The red light on the front face lights up to indicate that a voltage is present.
The connection could be done with flexible copper cables or with ferrule cables from 0.5mm² up to 2 x 2.5mm².
The tightening torque for the PZ1 screwdriver to connect screw connections is 1N.m.
The connection could be done with rigid copper cables from 0.5mm² minimum up to 2 x 2.5mm2 maximum.
It comes with staggered terminals to simplify the connection.
The LED indication light maximum consumption per indicator light is 0.3W.
The Operating frequency is 50Hz or 60Hz.
The service life of the LED indicator light is 100000h of constant lightning efficiency.
Because of the non-interchangeability of LEDs it is a maintenance-free device.
The tropicalization is Treatment 2 (relative humidity 95% at 55°C).
The degree of protection is IP20.
The pollution degree is 3.
The width in 9mm pitches is 2.
The dimensions are (W) 18mm x (H) 82mm x (D) 68mm.
The weight is 65g.
The operating temperature is -35°C to 70°C.
The storage temperature is -40°C to 80°C.
This product complies with IEC/EN 60947-5-1 standard.
| Attribute | Value |
|---|---|
| SKU | A9E18321 |
| relative humidity | 95-95 % at 55-55 °C |
| ambient air temperature for storage | -40-80 °C |
| pollution degree | 3 |
| ambient air temperature for operation | -35-70 °C |
| range of product | Acti 9 |
| product or component type | Miniature Circuit Breaker |
| mounting mode | fixed |
| standards | IEC 60947-5-1 |
| tropicalisation | 2 |
| comb busbar and distribution block compatibility | upside: ProDis |
| device short name | iIL |
| range | Command Control |
| wire stripping length | 9 mm |
| product name | Acti 9 iIL |
| auxiliary connection terminal | tunnel type terminal 1 cable(s) rigid 0.5-0.5 mm², tunnel type terminal 2 cable(s) rigid 2.5-2.5 mm², tunnel type terminal 1 cable(s) flexible 0.5-0.5 mm², tunnel type terminal 2 cable(s) flexible 2.5-2.5 mm², tunnel type terminal 2 cable(s) flexible with ferrule 2.5-2.5 mm² |
| [Us] rated supply voltage | 110...230 V AC at 50/60 Hz, 110...130 V DC |
| height | 82 mm |
| mounting support | symmetrical DIN rail |
| compatibility code | iIL |
| width | 18 mm |
| depth | 69.5 mm |
| IP degree of protection | IP2, IPxx B |
| 9 mm pitches | 2 |
| colour | white (RAL 9003) |
| tightening torque | 1-1 N.m |
| local signalling | 1 LED green, service life 100000 h of constant lighting efficiency (consumption 0.3 W) |
| market segment | small commercial, residential |
