Schneider Electric

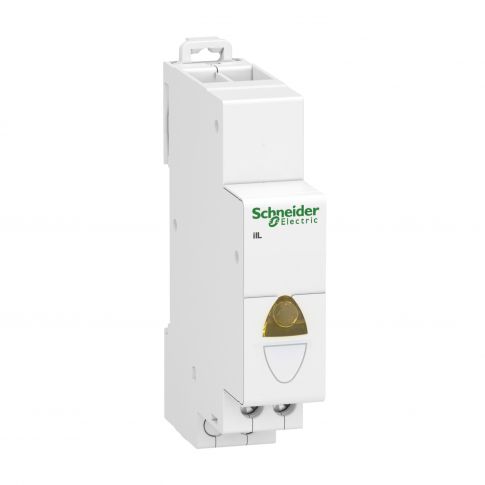

Acti9 iIL single indicator light - Yellow - 110-230 Vac - A9E18324
Out of stock
SKU
A9E18324
More Information
| Attribute | Value |
|---|---|
| SKU | A9E18324 |
| relative humidity | 95-95 % at 55-55 °C |
| ambient air temperature for storage | -40-80 °C |
| pollution degree | 3 |
| ambient air temperature for operation | -35-70 °C |
| range of product | Acti 9 |
| product or component type | Miniature Circuit Breaker |
| mounting mode | fixed |
| standards | IEC 60947-5-1 |
| tropicalisation | 2 |
| comb busbar and distribution block compatibility | upside: ProDis |
| device short name | iIL |
| range | Command Control |
| wire stripping length | 9 mm |
| product name | Acti 9 iIL |
| auxiliary connection terminal | tunnel type terminal 1 cable(s) rigid 0.5-0.5 mm², tunnel type terminal 2 cable(s) rigid 2.5-2.5 mm², tunnel type terminal 1 cable(s) flexible 0.5-0.5 mm², tunnel type terminal 2 cable(s) flexible 2.5-2.5 mm², tunnel type terminal 2 cable(s) flexible with ferrule 2.5-2.5 mm² |
| [Us] rated supply voltage | 110...230 V AC at 50/60 Hz, 110...130 V DC |
| height | 82 mm |
| mounting support | symmetrical DIN rail |
| compatibility code | iIL |
| width | 18 mm |
| depth | 69.5 mm |
| IP degree of protection | IP2, IPxx B |
| 9 mm pitches | 2 |
| colour | white (RAL 9003) |
| tightening torque | 1-1 N.m |
| local signalling | 1 LED yellow, service life 100000 h of constant lighting efficiency (consumption 0.3 W) |
| market segment | small commercial, residential |
