Schneider Electric

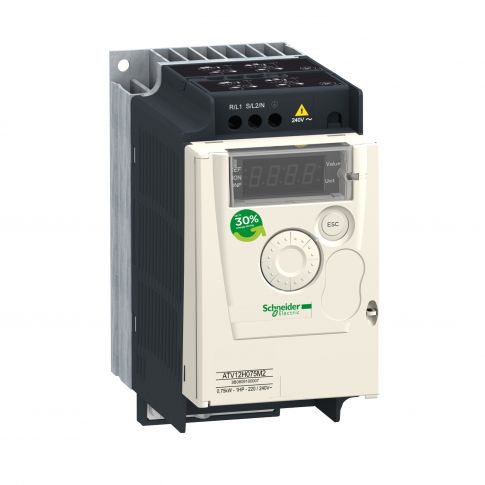

Altivar 12 variable speed drive ATV12 - 0.75kW - 1hp - 200..240V - 1ph - with heat sink - ATV12H075M2
In stock
SKU
ATV12H075M2
Details
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262.
The analogue output module provides 2 outputs with 11bit + sign and 12bit resolution.
It is an output module with a rated supply voltage of 24V DC and a current consumption of 70mA at 24V DC via external supply full load.
This product is capable of controlling variable speed drives or any device equipped with a current or voltage input.
There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC.
It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs.
It is an IP20 rated product.
Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height).
It weighs 0.115kg.
This product is certified by CE.
It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.
This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller.
It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount.
Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism.
A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers.
Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
More Information
| Attribute | Value |
|---|---|
| SKU | ATV12H075M2 |
| product certifications | GOST, CSA, UL, C-Tick, NOM |
| relative humidity | 5-95 % without condensation conforming to IEC 60068-2-3, 5-95 % without dripping water conforming to IEC 60068-2-3 |
| ambient air temperature for storage | -25-70 °C |
| ambient air temperature for operation | -10-40 °C protective cover from the top of the drive removed, 40-60 °C with current derating 2.2 % per °C |
| motor power hp | 1 hp |
| continuous output current | 4.2 A at 4 kHz |
| output voltage | 200...240 V 3 phases |
| range of product | Altivar 12 |
| operating position | vertical +/- 10 degree |
| product or component type | Soft Starter & Variable Speed Drive |
| net weight | 0.8 kg |
| range | Altivar Machine ATV12 |
| minimum switching current | 5 mA at 24 V DC for logic relay |
| power range | 0.55-1 kW at 200-240 V 1 phase |
| time constant | 20 ms +/- 1 ms for reference change |
| motor starter type | variable speed drive |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| electromagnetic compatibility | electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4, electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2, immunity to conducted disturbances level 3 conforming to EN/IEC 61000-4-6, radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3, surge immunity test level 3 conforming to EN/IEC 61000-4-5, voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11 |
| analogue input type | configurable current AI1 0...20 mA 250 Ohm, configurable voltage AI1 0...10 V 30 kOhm, configurable voltage AI1 0...5 V 30 kOhm |
| electrical connection | terminal, clamping capacity: 3.5 mm², AWG 12 (L1, L2, L3, U, V, W, PA, PC) |
| discrete output type | logic output LO+, LO-, protected relay output R1A, R1B, R1C 1 C/O |
| line current | 10.2 A at 200 V, 8.5 A at 240 V |
| speed drive output frequency | 0.5-400 Hz |
| asynchronous motor control profile | quadratic voltage/frequency ratio, voltage/frequency ratio (V/f), sensorless flux vector control |
| maximum transient current | 6.3 A for 60 s |
| analogue output number | 1 |
| nominal switching frequency | 4 kHz |
| braking to standstill | by DC injection, <30 s |
| insulation | electrical between power and control |
| functionality | basic |
| speed range | 1-20 |
| height | 143 mm |
| marking | CE |
| width | 72 mm |
| depth | 131.2 mm |
| vibration resistance | 1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm peak to peak (f = 3-13 Hz) - drive unmounted on symmetrical DIN rail - conforming to EN/IEC 60068-2-6 |
| operating altitude | <= 1000 m without derating, > 1000...2000 m with current derating 1 % per 100 m |
| IP degree of protection | IP20 without blanking plate on upper part |
| tightening torque | 0.8 N.m |
| product destination | asynchronous motors |
| Quantity per set | set of 1 |
| protection type | line supply overvoltage, line supply undervoltage, overcurrent between output phases and earth, overheating protection, short-circuit between motor phases, against input phase loss in three-phase, thermal motor protection via the drive by continuous calculation of I²t |
| connector type | 1 RJ45 (on front face) for Modbus |
| motor power kW | 0.75 kW |
| supply frequency | 50/60 Hz +/- 5 % |
| shock resistance | 15 gn conforming to EN/IEC 60068-2-27 for 11 ms |
| network number of phases | 1 phase |
| communication port protocol | Modbus |
| communication service | read holding registers (03) 29 words, write single register (06) 29 words, write multiple registers (16) 27 words, read/write multiple registers (23) 4/4 words, read device identification (43) |
| product specific application | simple machine |
| electromagnetic emission | radiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2...16 kHz shielded motor cable, conducted emissions with integrated EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m, conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2...12 kHz shielded motor cable <5 m, conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m, conducted emissions with additional EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <20 m, conducted emissions with additional EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m, conducted emissions with additional EMC filter environment 2 category C3 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m |
| analogue output type | AO1 software-configurable voltage: 0...10 V, impedance: 470 Ohm, resolution 8 bits, AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits |
| maximum switching current | 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay, 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay, 3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay, 4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay |
| discrete output number | 2 |
| noise level | 0 dB |
| discrete input type | programmable LI1...LI4 24 V 18...30 V |
| physical interface | 2-wire RS 485 for Modbus |
| discrete input number | 4 |
| assembly style | with heat sink |
| transmission rate | 4800 bit/s, 9600 bit/s, 19200 bit/s, 38400 bit/s |
| discrete input logic | negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm, positive logic (source), 0...< 5 V (state 0), > 11 V (state 1) |
| prospective line Isc | 1 kA |
| acceleration and deceleration ramps | U, S, linear from 0 to 999.9 s |
| transmission frame | RTU for Modbus |
| switching frequency | 2...16 kHz adjustable, 4...16 kHz with derating factor |
| analogue input number | 1 |
| motor slip compensation | adjustable, preset in factory |
| number of addresses | 1-247 for Modbus |
| linearity error | +/- 0.3 % of maximum value for analogue input |
| specific application | commercial equipment |
| EMC filter | integrated |
| sampling duration | 20 ms, tolerance +/- 1 ms for logic input, 10 ms for analogue input |
| component name | ATV12 |
| frequency resolution | display unit: 0.1 Hz, analog input: converter A/D, 10 bits |
| supply | internal supply for reference potentiometer: 5 V DC (4.75-5.25 V), <10 mA, protection type: overload and short-circuit protection, internal supply for logic inputs: 24 V DC (20.4-28.8 V), <100 mA, protection type: overload and short-circuit protection |
| transient overtorque | 150-170 % of nominal motor torque depending on drive rating and type of motor |
| built-in fan | without |
| braking torque | up to 70 % of nominal motor torque without braking resistor |
