Schneider Electric

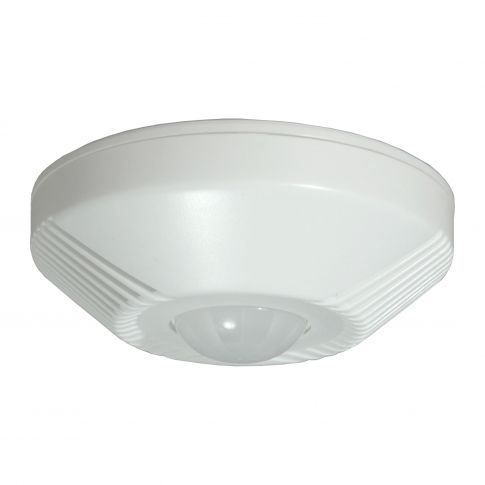

ARGUS Movement detectors Presence Dual-Tech - 1ch - CCT551011
Out of stock
SKU
CCT551011
Details
This Argus motion sensor is combining PIR and ultrasonic technologies to ensure maximum effectiveness.
The detection range of the PIR part of this motion sensor is 8m diameter with an angle of 360° ( at 2.5m height).
The detection range of the ultrasonic part of this motion sensor is 10 x 16m ( at 2.5m installation height).
More Information
| Attribute | Value |
|---|---|
| SKU | CCT551011 |
| range | ARGUS |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| colour tint | white |
| control type | movement sensor |
| output voltage | 220...250 V |
| number of channels | 2 |
| IP degree of protection | IP20 |
| network frequency | 50/60 Hz |
| horizontal detection angle | 360-360 ° |
| input function | switch, external trigger |
| light intensity adjustment | 10-1000 lux |
| output current | 10 A |
| load type | LED lighting: : 100 W, incandescent lamps: : 2000 W - 230 V, halogen lamp: : 1000 W - 230 V, halogen lamp with standard electronic transformer: 1000 VA, halogen lamp with standard ferromagnetic transformer: 1000 VA, fluorescent tube: 900 VA, 100 µF |
| function available | switching, toggling, dimming |
| mounting height | 2.5-2.5 m |
