Schneider Electric

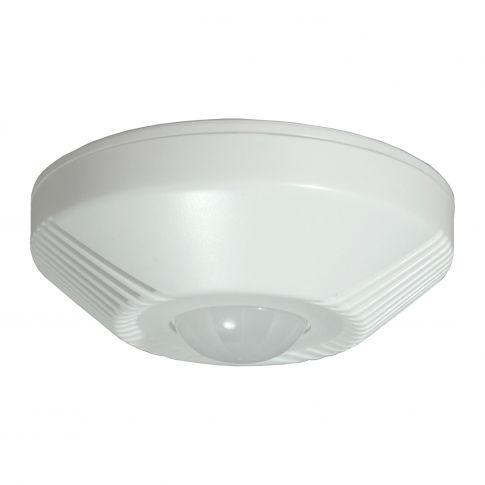

ARGUS Movement detectors Presence Dual-Tech - 2ch - CCT551012
Out of stock
SKU
CCT551012
More Information
| Attribute | Value |
|---|---|
| SKU | CCT551012 |
| range | ARGUS |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| colour tint | white |
| control type | movement sensor |
| output voltage | 220...250 V |
| number of channels | 2 |
| IP degree of protection | IP20 |
| network frequency | 50/60 Hz |
| horizontal detection angle | 360-360 ° |
| input function | switch, external trigger |
| light intensity adjustment | 10-2000 lux |
| output current | 10 A |
| load type | motor: : 100 W, relay: : 5 A - 250 V, LED lighting: : 400 W, incandescent lamps: : 2300 W - 230 V, halogen lamp: : 1200 W - 230 V, halogen lamp with standard electronic transformer: 1200 VA, halogen lamp with standard ferromagnetic transformer: 1200 VA, fluorescent tube: 1200 VA, 140 µF, compact fluorescent lamp: : 400 W |
| function available | switching, toggling, dimming |
| mounting height | 2.5-2.5 m |
