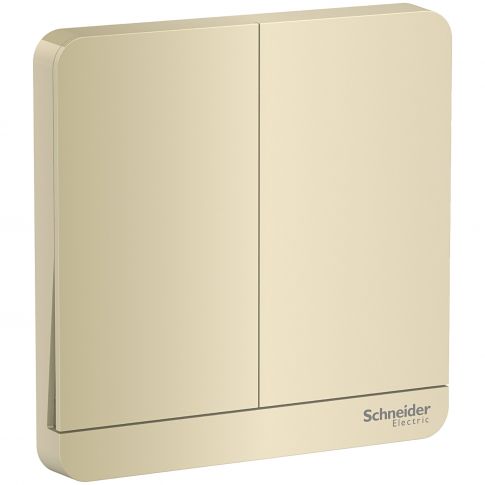

AvatarOn 2 switches, 16AX, 250V, 1 way, LED, Wine Gold - E8332L1LED_WG_G3
Schneider Electric AvatarOn switch E8332L1LED_WG_G3 is a complete product in color wine gold with 2 rockers.
This is a 1-pole 1-way switch with a LED indicator.
And its rated current is 16AX.
It is 86 mm in width, 86 mm in height, 34.2 mm in depth, Its matching mounting box can be recessed into the surface of the wall with flush type.
The IP rating of this device is IP20.
The connection terminals of this switch are brass terminal.
Being made of polycarbonate, polycarbonate + GF 20 % material, this switch is quite reliable and resistant.
AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.
Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
Attribute | Value |
---|---|
SKU | E8332L1LED_WG_G3 |
range | AvatarOn |
product or component type | Saklar, Stop Kontak & Aksesoris |
number of gangs | 2 gangs |
number of rocker | 2 |
colour tint | wine gold |
switch function | 1-pole 1-way |
IP degree of protection | IP20 |
load type | fluorescent lamp, incandescent lamp, inductive, resistive |
maximum ambient air temperature for operation | 45 °C |
device mounting | flush, surface |
material | polycarbonate: grid plate, polycarbonate: base, polycarbonate: dolly, polycarbonate: frame, polycarbonate + GF 20 %: actuator |
clamping connection capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
connections - terminals | brass terminal |
depth | 34.2 mm |
height | 86 mm |
width | 86 mm |
device presentation | complete product |
standards | IEC 60669-1, MS IEC 60669-1, BS EN 60669-1, SS 227-1 |
device application | control |
relative humidity | 0-95 % |
environmental characteristic | UV resistant |
operating altitude | 2000 m |
local signalling | off: LED indicator, LED (amber) |
rated current | 16 AX at 250 V AC 50/60 Hz |
