Schneider Electric
AvatarOn 2 time delay switch, 4 A, 250 V, White - E8332PRL1_WE_G3
Out of stock
SKU
E8332PRL1_WE_G3
Details

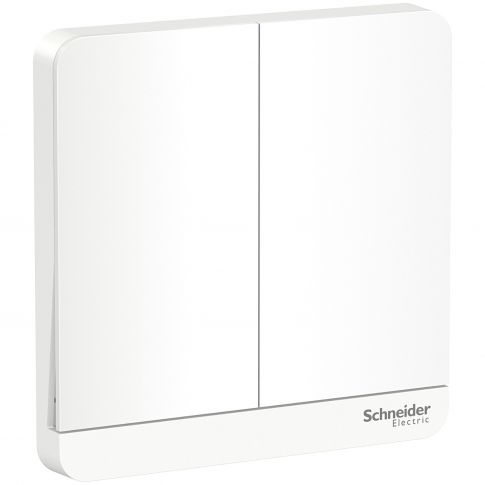

Schneider Electric AvatarOn time delay switch E8332PRL1_WE_G3 is a complete product in color white with 2 gangs and with 2 rockers.
Its matching mounting box can be recessed into the surface of the wall with flush type.
The fixing mode of this device is clip-in.
The time delay switch is made of PC (polycarbonate), brass, making it as resistant as possible.
250V is the rated operational voltage.
It is 86 mm in width, 86 mm in height, 34 mm in depth, with an embedding depth of 25 mm.
And the product weighs 0.089 kg.
The IP rating of this device is IP20.
The surface finish is glossy, which ensures a bright, even an inviting finish.
More Information
| Attribute | Value |
|---|---|
| SKU | E8332PRL1_WE_G3 |
| range | AvatarOn |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| number of gangs | 2 gangs |
| number of rocker | 2 |
| colour tint | white |
| [Ue] rated operational voltage | 250 V AC 50...60 Hz |
| [Ie] rated operational current | resistive: 4 A, inductive: 4 A |
| IP degree of protection | IP20 |
| actuator | rocker |
| device mounting | flush |
| embedding depth | 25 mm |
| surface finish | glossy |
| material | PC (polycarbonate): grid plate, PC (polycarbonate): surround, PC (polycarbonate): base, PC (polycarbonate): base cover, PC (polycarbonate): dolly, brass: terminal cover |
| clamping connection capacity | 1...4 mm² for rigid cable(s), 1...4 mm² for stranded cable(s), 1...4 mm² for flexible cable(s) |
| depth | 34 mm |
| height | 86 mm |
| width | 86 mm |
| net weight | 0.089 kg |
| device presentation | complete product |
| fixing mode | clip-in |
