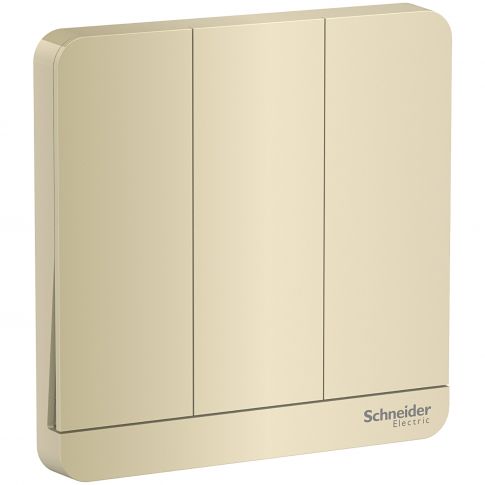

AvatarOn 3 switches, 16AX, 250V, 2 way, LED, Wine Gold - E8333L2LED_WG_G3
Schneider Electric AvatarOn switch E8333L2LED_WG_G3 is a complete product in color wine gold with 3 rockers.
This is a 1-pole 2-way switch with a LED indicator.
And its rated current is 16AX.
It is 86 mm in width, 86 mm in height, 34.2 mm in depth, with an embedding depth of 24.5 mm.
Its matching mounting box can be recessed into the surface of the wall with flush type.
It reaches IP20 degree of protection too.
Its connection terminals are brass terminal.
Being made of polycarbonate, polycarbonate + GF 20 % material, this switch is quite reliable and resistant.
AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.
Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
| Attribute | Value |
|---|---|
| SKU | E8333L2LED_WG_G3 |
| range | AvatarOn |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| number of gangs | 3 gangs |
| number of rocker | 3 |
| colour tint | wine gold |
| switch function | 1-pole 2-way |
| IP degree of protection | IP20 |
| load type | fluorescent lamp, incandescent lamp, inductive, resistive |
| maximum ambient air temperature for operation | 35 °C |
| device mounting | flush, surface |
| embedding depth | 24.5 mm |
| material | polycarbonate: grid plate, polycarbonate: base, polycarbonate: dolly, polycarbonate: frame, polycarbonate + GF 20 %: actuator |
| clamping connection capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
| connections - terminals | brass terminal |
| depth | 34.2 mm |
| height | 86 mm |
| width | 86 mm |
| device presentation | complete product |
| standards | GB 16915.1 |
| device application | control |
| relative humidity | 0-95 % |
| operating altitude | 2000 m |
| local signalling | off: LED indicator, LED |
| rated current | 16 AX at 250 V AC 50/60 Hz |
