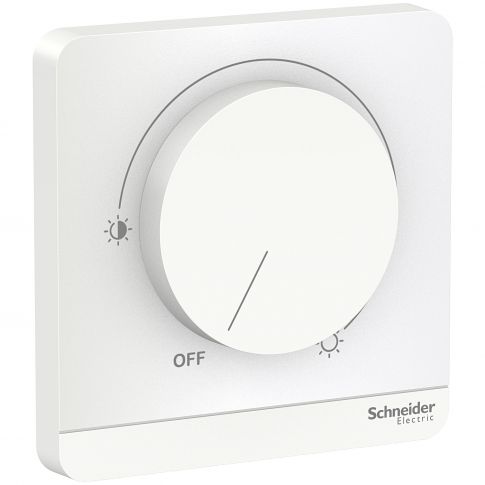

AvatarOn rotary dimmer, 250 VA, White - E8331RD250_WE
Schneider Electric AvatarOn dimmer E8331RD250_WE is a complete product in color white.
This product is sold in set of 8.
220...240V is the rated operational voltage.
With surge arrester, thermal fuse protection type, this dimmer concerns your safety.
Its matching mounting box can be recessed into the surface of the wall with flush type.
What's more, its directives are 2011/65/EU - Ro.
HS directive.
It is 86 mm in width, 86 mm in height, and with an embedding depth of 35 mm.
Besides, the IP rating of this device is IP20.
What's more, it well satisfied the standard of CE, IEC 60669-2-1.
And it is mercury free Being environmentally friendly, this dimmer is a green premium product too.
AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.
| Attribute | Value |
|---|---|
| SKU | E8331RD250_WE |
| range | AvatarOn |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| colour tint | white |
| [Ue] rated operational voltage | 220...240 V AC 50/60 Hz |
| IP degree of protection | IP20 |
| load type | incandescent lamps - 50...250 W - 220...240 V AC, high voltage halogen lamp - 50...250 W - 220...240 V AC, electronic transformer - 50...250 VA, dimmable LED - 3...100 W |
| actuator | knob |
| device mounting | flush |
| embedding depth | 35 mm |
| material | polycarbonate: plastic part, brass: terminals, steel coated with zinc chromate: terminal screw |
| ambient air temperature for operation | 0-40 °C |
| ambient air temperature for storage | 0-60 °C |
| clamping connection capacity | <= 2 x 2.5 mm² for flexible cable(s), <= 2 x 2.5 mm² for rigid cable(s) |
| height | 86 mm |
| width | 86 mm |
| device presentation | complete product |
| fixing mode | by screws |
| standards | IEC 60669-2-1, CE |
| relative humidity | 10-95 % |
| protection type | thermal fuse, surge arrester |
| environmental characteristic | oil and vapour resistant |
| type of packing | carton |
