Schneider Electric
AvatarOn shaver socket, 115/240V, 20VA, Wood - E83T727V_WD
Out of stock
SKU
E83T727V_WD
Details

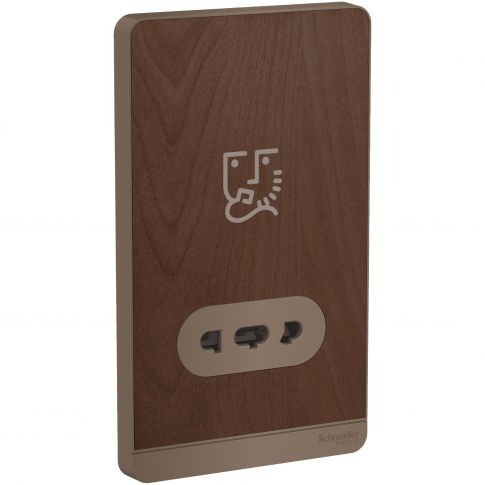

Schneider Electric AvatarOn E83T727V_WD in color wood is a universal vertical shaver socket.
The input voltage of this shaver socket is 240V, output voltage 115V/240V and rated operating power 20VA.
The socket is 86 mm in width, 147 mm in height and 50 mm in depth.
Surface mounting is the mounting type of this shaver socket.
And its connection terminal is pillar terminal.
Besides, the PC (polycarbonate) and brass material makes the device as resistant as possible.
IP21 level makes the shaver socket as reliable and resistant as possible.
This socket is UV resistant, preventing unintended failure as a result of deterioration.
The standard of IEC 61558-2-5 is well satisfied.
More Information
| Attribute | Value |
|---|---|
| SKU | E83T727V_WD |
| range | AvatarOn |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| colour tint | wood |
| output voltage | 115 V AC 50/60 Hz, 240 V AC 50/60 Hz |
| IP degree of protection | IP21 |
| device mounting | surface |
| material | polycarbonate: surround, polycarbonate: grid plate, brass: terminals, polycarbonate: bracket |
| ambient air temperature for operation | -5-45 °C |
| ambient air temperature for storage | 0-60 °C |
| connections - terminals | pillar terminals |
| depth | 50 mm |
| height | 147 mm |
| width | 86 mm |
| device presentation | complete product |
| standards | IEC 61558-2-5 |
| relative humidity | 0-95 % |
| environmental characteristic | UV resistant |
| operating altitude | 2000 m |
| input voltage | 240 V AC 50/60 Hz |
