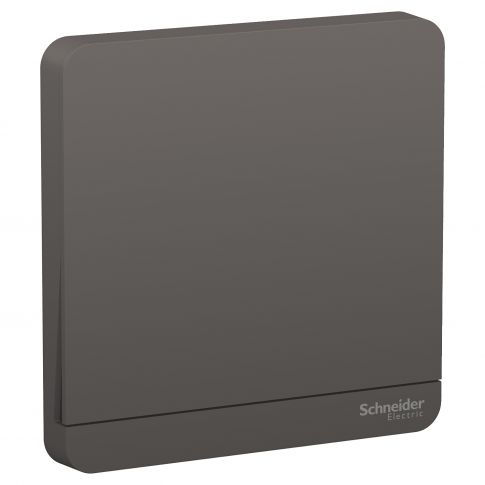

AvatarOn switch, 16AX, 250V, 2 way, LED, Dark Grey - E8331L2LED_DG_G3
Schneider Electric AvatarOn switch E8331L2LED_DG_G3 is a complete product in color dark grey with 1 rocker.
This is a 1-pole 2-way switch with a LED indicator.
And its rated current is 16AX.
It is 86 mm in width, 86 mm in height, 34.2 mm in depth, Its matching mounting box can be recessed into the surface of the wall with flush type.
The IP rating of this device is IP20.
Its connection terminals are brass terminal.
The switch is made of polycarbonate, polycarbonate + GF 20 %, making it as resistant as possible.
Being environmentally friendly, this switch is a green premium product too.
And it is mercury free AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.
Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
| Attribute | Value |
|---|---|
| SKU | E8331L2LED_DG_G3 |
| range | AvatarOn |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| number of gangs | 1 gang |
| number of rocker | 1 |
| colour tint | dark grey |
| switch function | 1-pole 2-way |
| IP degree of protection | IP20 |
| load type | fluorescent lamp, incandescent lamp, inductive, resistive |
| maximum ambient air temperature for operation | 45 °C |
| device mounting | flush, surface |
| material | polycarbonate: grid plate, polycarbonate: base, polycarbonate: dolly, polycarbonate: frame, polycarbonate + GF 20 %: actuator |
| clamping connection capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
| connections - terminals | brass terminal |
| depth | 34.2 mm |
| height | 86 mm |
| width | 86 mm |
| device presentation | complete product |
| standards | IEC 60669-1, MS IEC 60669-1, BS EN 60669-1, SS 227-1 |
| device application | control |
| relative humidity | 0-95 % |
| environmental characteristic | UV resistant |
| operating altitude | 2000 m |
| local signalling | off: LED indicator, LED (amber) |
| rated current | 16 AX at 250 V AC 50/60 Hz |
