Schneider Electric

AvatarOn switch, 16AX, 250V, intermediate, Wine gold - E8331M_WG_G3

Out of stock
SKU
E8331M_WG_G3
27%
Special Price Rp 110.606 Regular Price Rp 151.515
Details

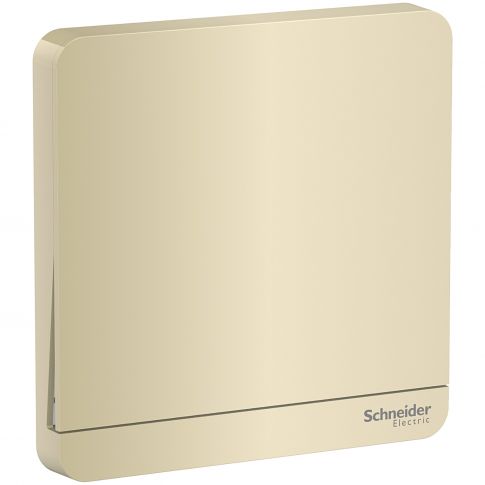

Schneider Electric AvatarOn switch E8331M_WG_G3 is a complete product in color wine gold with 1 rocker.

This is an intermediate switch.

And its rated current is 16AX.

It is 86 mm in width, 86 mm in height, 29.95 mm in depth, with an embedding depth of 20.25 mm.

Its matching mounting box can be recessed into the surface of the wall with flush type.

It reaches IP20 degree of protection too.

The connection terminals of this switch are brass terminal.

Being made of polycarbonate, polycarbonate + GF 20 % material, this switch is quite reliable and resistant.

AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.

Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

More Information
More Information
Attribute Value
SKU E8331M_WG_G3
range AvatarOn
product or component type Saklar, Stop Kontak & Aksesoris
number of gangs 1 gang
number of rocker 1
colour tint wine gold
switch function intermediate
IP degree of protection IP20
load type fluorescent lamp, incandescent lamp, inductive, resistive
maximum ambient air temperature for operation 35 °C
device mounting flush, surface
embedding depth 20.25 mm
material polycarbonate: grid plate, polycarbonate: base, polycarbonate: dolly, polycarbonate: frame, polycarbonate + GF 20 %: actuator
clamping connection capacity 2 x 2.5 mm² for solid cable(s), 2 x 2.5 mm² for stranded cable(s), 3 x 1.5 mm² for solid cable(s), 3 x 1.5 mm² for stranded cable(s)
connections - terminals brass terminal
depth 29.95 mm
height 86 mm
width 86 mm
device presentation complete product
standards GB 16915.1
device application control
relative humidity 0-95 %
operating altitude 2000 m
rated current 16 AX at 250 V AC 50/60 Hz
