Schneider Electric
AvatarOn time delay switch, 4 A, 250 V, Wine Gold - E8331PRL1_WG_G3
Out of stock
SKU
E8331PRL1_WG_G3
Details

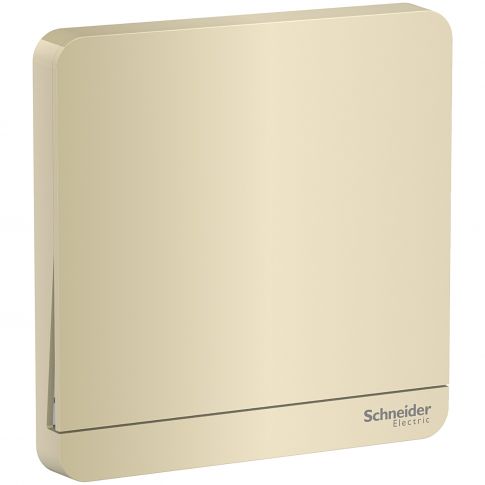

Schneider Electric AvatarOn time delay switch E8331PRL1_WG_G3 is a complete product in color wine gold with 1 gang and with 1 rocker.
Its matching mounting box can be recessed into the surface of the wall with flush type.
The fixing mode of this device is clip-in.
Being made of PC (polycarbonate), brass material, this time delay switch is quite reliable and resistant.
250V is the rated operational voltage.
It is 86 mm in width, 86 mm in height, 34 mm in depth, with an embedding depth of 25 mm.
And the product weighs 0.077 kg.
Besides, the IP rating of this device is IP20.
The surface finish is glossy, delivering an elegant and high-end feeling to a room.
More Information
| Attribute | Value |
|---|---|
| SKU | E8331PRL1_WG_G3 |
| range | AvatarOn |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| number of gangs | 1 gang |
| number of rocker | 1 |
| colour tint | wine gold |
| [Ue] rated operational voltage | 250 V AC 50...60 Hz |
| [Ie] rated operational current | resistive: 4 A, inductive: 4 A |
| IP degree of protection | IP20 |
| actuator | rocker |
| device mounting | flush |
| embedding depth | 25 mm |
| surface finish | glossy |
| material | PC (polycarbonate): grid plate, PC (polycarbonate): surround, PC (polycarbonate): base, PC (polycarbonate): base cover, PC (polycarbonate): dolly, brass: terminal cover |
| clamping connection capacity | 1...4 mm² for rigid cable(s), 1...4 mm² for stranded cable(s), 1...4 mm² for flexible cable(s) |
| depth | 34 mm |
| height | 86 mm |
| width | 86 mm |
| net weight | 0.077 kg |
| device presentation | complete product |
| fixing mode | clip-in |
