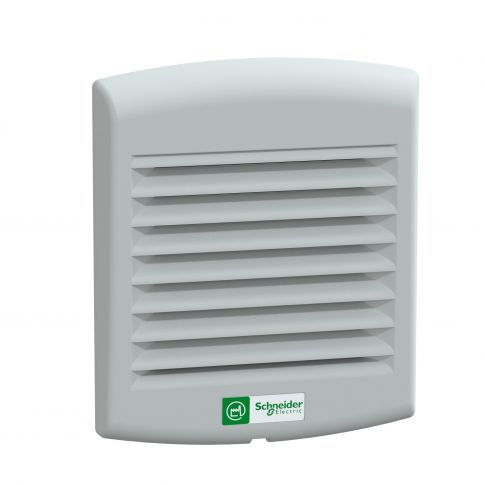

ClimaSys CV forced vent. IP54, 38m3/h, 230V, with outlet grille and filter G2 - NSYCVF38M230PF

Out of stock

SKU

NSYCVF38M230PF

Details

ClimaSys CV Axial motor ventilator.

230V 50Hz or 60Hz.

4.5 W 50 Hz, 4.8 W 60 Hz.

Free flow rate with standard filter of 38 m3/h at 50 Hz and 39 m3/h at 60 Hz.

137 x 117 x 49 mm.

Cut-out dimensions of 92 x 92 mm.

Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035.

Connections terminals by cable.

2 protective grille on the front and rear surfaces.

Protection IP54.

More Information

More Information
Attribute	Value
SKU	NSYCVF38M230PF
ambient air temperature for storage	-40-70 °C
ambient air temperature for operation	-10-70 °C
bearing type	ball
input voltage	230 V 50/60 Hz
product or component type	Panel Industri & Kontrol Temperatur
net weight	0.22 kg
range	Sistem Ventilasi Panel
product name	ClimaSys CV
power range	4.5 W 50 Hz, 4.8 W 60 Hz
[Us] rated supply voltage	150...250 V
type of ventilation filter	standard
connections - terminals	cable
height	137 mm external:
width	117 mm external:
depth	49 mm external:
IP degree of protection	IP54
[In] rated current	0.16-0.16 A 50 Hz, 0.17-0.17 A 60 Hz
colour	outlet grille: grey (RAL 7035)
material	outlet grille: injected thermoplastic (ASA PC)
condition of use	outside temperature must be 5 °C lower than inside temperature, flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean
cut-out dimensions	92 x 92 mm
device composition	1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template
noise level	40-41 dB
air flow	free flow rate with standard filter: 38 m3/h at 50 Hz, free flow rate with standard filter: 39 m3/h at 60 Hz
maximum pressure	29 Pa flow rate 0 m³/h
