Compact IN125 switch-disconnector - 4 poles - 125 A - 28911
Out of stock
SKU
28911
Details

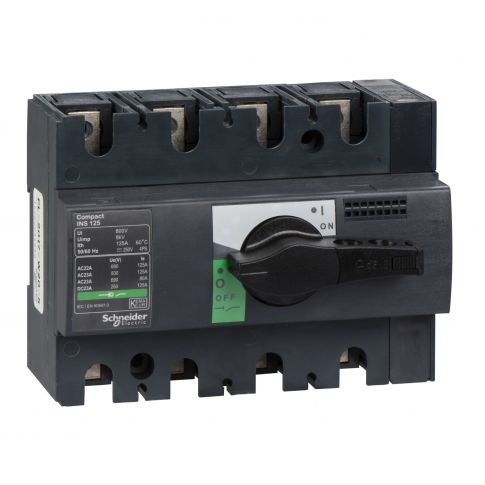

This Compact INS125 is a 4 poles non-automatic switch-disconnector with black rotary handle.
It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards.
The operational current is 125A at 415VAC in categories AC22A and AC23A.
The rated voltage is 690VAC 50/60Hz or 250VDC.
The black rotary handle is designed to offer easy operation and high performance in interruption of currents.
Compact INS125 is a class II insulation level front-face device as per IEC 60664 standard.
More Information
| Attribute | Value |
|---|---|
| SKU | 28911 |
| product certifications | CCC, KEMA-KEUR |
| ambient air temperature for storage | -50-85 °C |
| pollution degree | 3 |
| ambient air temperature for operation | -25-70 °C |
| upside connection | front |
| [Icw] rated short-time withstand current | 0.01 kA during 30 s conforming to IEC 60947-3, 1.23 kA during 20 s conforming to IEC 60947-3, 3.175 kA during 3 s conforming to IEC 60947-3, 5.5 kA during 1 s conforming to IEC 60947-3 |
| range of product | INS40...160 |
| product or component type | MCCB |
| net weight | 0.9 kg |
| mounting mode | fixed |
| standards | IEC 60947-1, IEC 60947-3 |
| mechanical durability | 15000 cycles |
| device short name | Compact INS125 |
| range | Switch Disconnector |
| [Ie] rated operational current | AC-22A: 125 A AC 50/60 Hz 220/240 V, AC-23A: 80 A AC 50/60 Hz 660/690 V, DC-22A: 125 A DC 125 V 2 poles in series, DC-23A: 125 A DC 125 V 2 poles in series, AC-22A: 125 A AC 50/60 Hz 380/415 V, AC-22A: 125 A AC 50/60 Hz 440/480 V, AC-22A: 125 A AC 50/60 Hz 500 V, AC-22A: 125 A AC 50/60 Hz 660/690 V, AC-23A: 125 A AC 50/60 Hz 220/240 V, AC-23A: 125 A AC 50/60 Hz 380/415 V, AC-23A: 125 A AC 50/60 Hz 440/480 V, AC-23A: 125 A AC 50/60 Hz 500 V, DC-22A: 125 A DC 250 V 4 poles in series, DC-23A: 125 A DC 250 V 4 poles in series |
| IK degree of protection | IK07 conforming to EN 50102 |
| downside connection | front |
| [Uimp] rated impulse withstand voltage | 8 kV |
| product name | Compact INS |
| [Ith] conventional free air thermal current | 125 A at 60 °C |
| maximum power | AC-23: 55 kW at 440 V AC 50/60 Hz, AC-23: 37 kW at 220/240 V AC 50/60 Hz, AC-23: 55 kW at 380/415 V AC 50/60 Hz, AC-23: 75 kW at 500/525 V AC 50/60 Hz, AC-23: 75 kW at 660/690 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz, 20 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| intermittent duty class | class 120 - 60 % |
| network frequency | 50/60 Hz |
| height | 100 mm |
| mounting support | DIN rail, plate |
| compatibility code | INS125 |
| width | 135 mm |
| depth | 62.5 mm |
| IP degree of protection | IP40 conforming to IEC 60529 |
| network type | AC, DC |
| poles description | 4P |
| electrical durability | AC-22A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 500 V AC 50/60 Hz, DC-23A: 1500 cycles 250 V DC 4 poles in series, DC-22A: 1500 cycles 250 V DC 4 poles in series, AC-22A: 1500 cycles 690 V AC 50/60 Hz, AC-23A: 1500 cycles 690 V AC 50/60 Hz |
| control type | rotary handle |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 250 V DC |
| connection pitch | 30 mm |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| suitability for isolation | yes |
| contact position indicator | yes |
| rated duty | uninterrupted |
| handle colour | black |
| enclosure dimensions for Ithe | 260 mm x 160 mm x 55 mm |
| visible break | no |
| switch-disconnector name | Compact INS125 |
