Schneider Electric

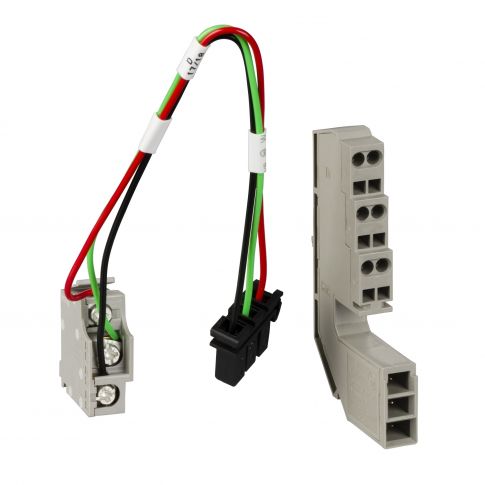

Compact NS > 630A auxiliary contact - 1 SDE - 33799
Out of stock
SKU
33799
More Information
| Attribute | Value |
|---|---|
| SKU | 33799 |
| range of product | ComPact NS630b...1600 |
| product or component type | MCCB |
| mounting mode | clip-on |
| device short name | SDE |
| range | Aksesoris |
| [Ie] rated operational current | AC-12: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, DC-12: 6 A at 24 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 0.3 A at 250 V DC, DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.03 A at 250 V DC |
| range compatibility | ComPact NS630b...1600 |
| accessory / separate part category | spare part for Compact NS630b...1600 |
| [Ith] conventional free air thermal current | 6 A |
| auxiliary contacts type | standard |
| fault type | general electric fault |
| device application | breaker status monitoring |
| local signalling | fault trip for electrical fault |
| minimum load | 100 mA at 24 V DC |
| signal contacts composition | 1 NO/NC |
