Compact NS > 630A circuit breaker NS1250N - Micrologic 5.0 - 1250 A - 4 poles 4t - 33566
Out of stock
SKU
33566
Details

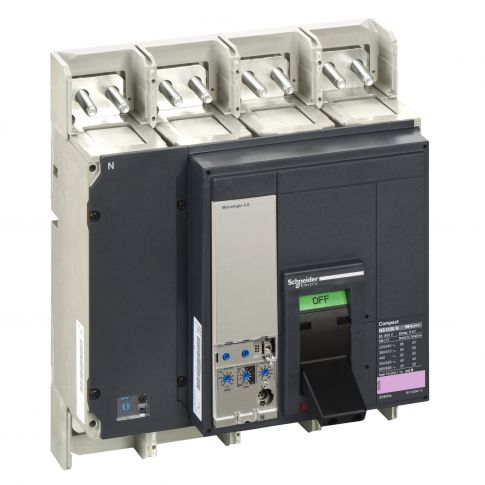

This Compact NS1250N is a complete 4 poles fixed circuit breaker designed to optimize space and breaking capacity.
It is an optimal choice for all standard and specific applications.
The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz.
The operational voltage is 690VAC 50/60Hz.
The circuit breaker can be manually operated with ON, OFF or "push to trip" buttons.
This product embeds an electronic Micrologic 5.0 trip unit, with 1250A rating.
Micrologic 5.0 trip unit provides adjustable long time, short time and instantaneous protections.
This 4 poles version (327mm x 280mm x 147mm) comes with a variety of optional functions and accessories.
It is compliant with IEC 69947-1 and IEC60947-2 international standards and marine specifications.
Compact NS1250N is part of Schneider Electric EcoStruxure Power architecture.
More Information
| Attribute | Value |
|---|---|
| SKU | 33566 |
| product certifications | ASEFA, ASTA |
| relative humidity | 0-95 % |
| ambient air temperature for storage | -50-85 °C |
| pollution degree | 3 conforming to IEC 60947 |
| ambient air temperature for operation | -25-70 °C |
| upside connection | front |
| [Icw] rated short-time withstand current | 19.2 kA 1 s conforming to IEC 60947-2 |
| range of product | ComPact NS630b...1600 |
| product or component type | MCCB |
| net weight | 18 kg |
| mounting mode | fixed |
| standards | EN/IEC 60947-2 |
| earth-leakage protection | without |
| mechanical durability | 10000 cycles |
| device short name | Compact NS1250N |
| breaking capacity | 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 |
| trip unit technology | electronic |
| range | ComPact NS |
| IK degree of protection | IK07 conforming to EN 50102 |
| [Ics] rated service breaking capacity | 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| trip unit name | Micrologic 5.0 |
| trip unit rating | 1250-1250 A at 50 °C |
| breaking capacity code | N 50 kA 415 V AC |
| downside connection | front |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| product name | ComPact NS |
| short-time delay adjustment type | adjustable |
| thermal memory | 20 mn |
| network frequency | 50/60 Hz |
| height | 327 mm |
| mounting support | backplate |
| compatibility code | NS1250 |
| width | 280 mm |
| depth | 147 mm |
| operating altitude | 0...2000 m without derating, 2000 m...5000 m with derating |
| IP degree of protection | IP40 conforming to IEC 60529 |
| [In] rated current | 1250 A at 50 °C |
| network type | AC |
| poles description | 4P |
| electrical durability | 4000 cycles at 440 V In, 2000 cycles at 690 V In, 3000 cycles at 690 V In/2, 5000 cycles at 440 V In/2 |
| device application | distribution |
| control type | toggle, rotary handle |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| local signalling | 4 LEDs (red) for fault indication, 1 LED (yellow) for overload |
| protection type | L : for overload protection (long time), I : for instantaneous short-circuit protection, S : for short time short-circuit protection |
| utilisation category | category B |
| neutral protection setting | no protection (3d), 1 x Ir (4d), 0.5 x Ir (3d + N/2) |
| connection pitch | 70 mm |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| suitability for isolation | yes conforming to EN/IEC 60947-2 |
| protected poles description | 4d |
| auxiliary contact composition | 1 NO/NC |
| neutral position | left |
| long time pick-up adjustment range | 0.4...1 x In |
| long time pick-up adjustment type Ir | adjustable 9 settings |
| instantaneous pick-up adjustment range | 2...15 x In, off |
| long time delay adjustment type | adjustable 9 settings |
| instantaneous pick-up adjustment type Ii | adjustable |
| power losses | 44 W |
| [Isd] short-time pick-up adjustment range | 1.5...10 x Ir |
| [tr] long-time delay adjustment range | 12.5-600 s at 1.5 x Ir, 0.5-24 s at 6 x Ir, 0.7-16.6 s at 7.2 x Ir |
| trip unit protection functions | LSI |
| short-time pick-up adjustment type Isd | adjustable 9 settings |
| [tsd] short-time delay adjustment range | 0.1-0.4 s I²t=on, 0-0.4 s I²t=off |
