Schneider Electric

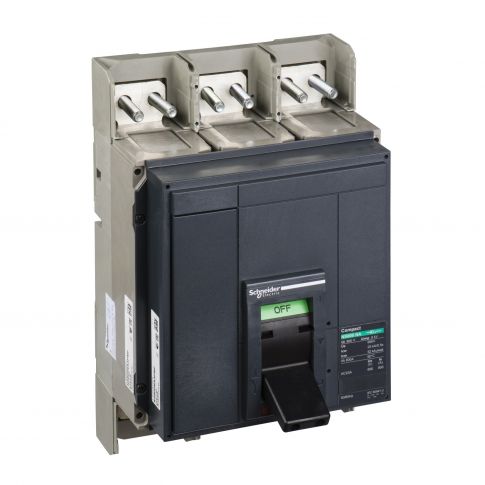

Compact NS > 630A molded case switch-disconnector Compact NS800 NA - 800 A - 3 poles - 33487
Out of stock
SKU
33487
More Information
| Attribute | Value |
|---|---|
| SKU | 33487 |
| product certifications | ASEFA, ASTA |
| ambient air temperature for storage | -50-85 °C |
| pollution degree | 3 conforming to IEC 60947-3 |
| ambient air temperature for operation | -25-70 °C |
| upside connection | front |
| [Icw] rated short-time withstand current | 25 kA during 0.5 s conforming to IEC 60947-3, 4 kA during 20 s conforming to IEC 60947-3 |
| range of product | NS630b...1600 |
| product or component type | MCCB |
| net weight | 14 kg |
| mounting mode | fixed |
| standards | IEC 60947-3 |
| mechanical durability | 6000 cycles conforming to IEC 60947-3 |
| device short name | Compact NS800 NA |
| range | Switch Disconnector |
| [Ie] rated operational current | AC-23A: 800 A AC 50/60 Hz 220/240 V, AC-23A: 800 A AC 50/60 Hz 380/415 V, AC-23A: 800 A AC 50/60 Hz 440/480 V, AC-23A: 800 A AC 50/60 Hz 500/525 V, AC-23A: 800 A AC 50/60 Hz 660/690 V |
| breaking capacity code | NA |
| downside connection | front |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| product name | ComPact NS |
| [Ith] conventional free air thermal current | 800 A at 60 °C |
| [Icm] rated short-circuit making capacity | 52 kA 690 V AC at 50/60 Hz |
| network frequency | 50/60 Hz |
| height | 327 mm |
| compatibility code | NS800 |
| width | 210 mm |
| depth | 147 mm |
| network type | AC |
| poles description | 3P |
| electrical durability | 1000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3 |
| device application | distribution |
| control type | toggle |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| connection pitch | 70 mm |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-3 |
| suitability for isolation | yes conforming to IEC 60947-3 |
| contact position indicator | yes |
| offer type | C4 |
| visible break | no |
