Compact NS > 630A window sensor for residual current protection - 470 x 160 mm - 33574
Out of stock
SKU
33574
Details

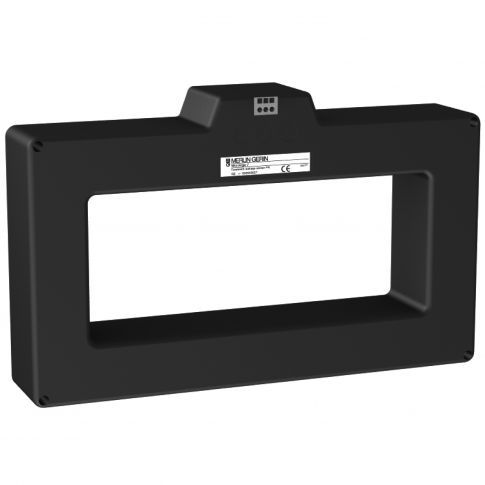

This is a rectangular sensor for earth leakage protection for Compact NS 1600b to 3200 devices equipped with Micrologic 7 A/P trip unit.
The sensor is installed around the busbars (phases + neutral) to detect the zero phase sequence current required for the earth-leakage protection.
The operational current is up to 3200 A.
The inside dimensions are 470mm (W) x 160mm (H) x 72mm (D).
The external dimensions are 572mm (W) x 281mm (H) x 72mm (D).
The weight is 18 Kg.
The sensor is installed in the switchboard.
The sensor is provided with a cable for the connection to Compact NS circuit breaker.
More Information
| Attribute | Value |
|---|---|
| SKU | 33574 |
| range of product | ComPact NS1600b...3200 |
| product or component type | Air Circuit Breaker |
| device short name | sensor + Vigi cable |
| range | Aksesoris |
| range compatibility | ComPact NS1600b...3200, Masterpact NW |
| accessory / separate part category | spare part for Compact NS1600b...3200, spare part for Masterpact NW |
| height | inside: 160 mm, outside: 281 mm |
| width | inside: 470 mm, outside: 572 mm |
| depth | 72 mm |
| [In] rated current | 2500 A, 2000 A, 1250 A, 1000 A, 800 A, 1600 A, 3200 A |
| device application | power supply |
| current transformer type | earth leakage protection |
