Compact NS switches disconnectors adjustable time delay relay for voltage release MN - 200/250 V AC/DC - 33682
In stock
SKU
33682
Details

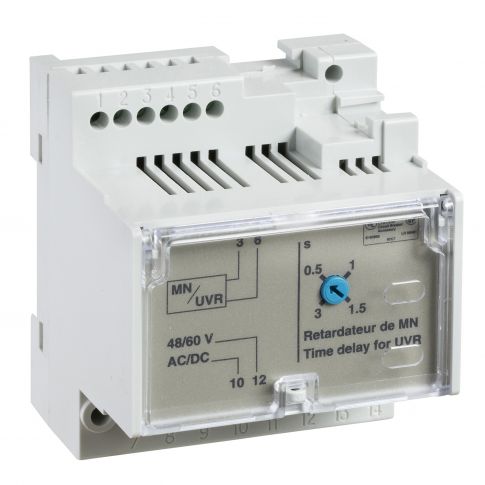

This time delay unit is an auxiliary that can be combined with an undervoltage release (MN).
It must be associated with a 250VDC MN undervoltage release.
It eliminates the risk of nuisance tripping due to transient voltage dips lasting from 200ms to 3s.
Its power supply is 200-250VDC or 200-250VAC 50/60Hz.
This time delay unit has 4 adjustable steps (0.5s - 1s - 1.5s - 3s).
It is an external accessory and can be mounted in the switchboard.
More Information
| Attribute | Value |
|---|---|
| SKU | 33682 |
| range of product | ComPact NSX100...250, ComPact NSX400...630, ComPact NSX100...250 DC, ComPact NSX400...630 DC, ComPact NS630b...1600, ComPact NS1600b...3200, ComPact NSXm |
| product or component type | MCCB |
| mounting mode | external mounting |
| device short name | MN delay unit |
| range | Aksesoris |
| [Uc] control circuit voltage | 200...250 V AC 50/60 Hz, 200...250 V DC |
| range compatibility | ComPact NSX, PowerPact Multistandard, ComPact NSX DC, ComPact NS630b...1600, ComPact NS1600b...3200, ComPact NSXm, Masterpact NW, MasterPact NT, Masterpact NW DC, Masterpact NW UL 489, Masterpact NT UL 489 |
| voltage release type | undervoltage release |
| accessory / separate part category | spare part for Compact NS630b...1600, spare part for Compact NS1600b...3200 |
| supply holding power | 4.5 VA |
| supply inrush power | 200 VA |
| device application | control |
| response time | 0.5 s, 1.5 s, 3 s, 1 s |
| threshold tripping voltage | 0.35...0.7 Un open, 0.85 Un close |
| time delay range | 0.5...3 s |
| impulse duration | 200 ms |
