Compact NS switches disconnectors auxiliary contact - 1 OC - 33801
Out of stock
SKU
33801
Details

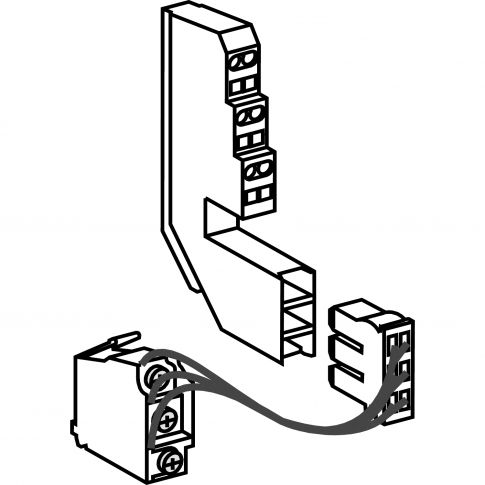

It is a single standard auxiliary contact for drawout Compact NS630b to 1600 devices.
This auxiliary contact that provides OF remote information of the circuit breaker status.
The OF contact (open/closed) indicates the position of the circuit breaker main contacts.
There is one auxiliary contact model for OF, SD or SDE information, depending on where it is fitted in the device.
This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact.
The rated current is 6A and the minimum load is 100mA at 24 VDC.
Utilization categories are AC12/AC13/DC12/DC14.
Compact NS 630b to 1600 can be equipped with 3 OF auxiliary contacts.
It complies with IEC 60947-5-1 standard.
More Information
| Attribute | Value |
|---|---|
| SKU | 33801 |
| range of product | ComPact NS630b...1600 |
| product or component type | MCCB |
| mounting mode | clip-on |
| device short name | OF |
| range | Aksesoris |
| [Ie] rated operational current | AC-12: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, DC-12: 6 A at 24 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 0.3 A at 250 V DC, DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.03 A at 250 V DC |
| range compatibility | ComPact NS630b...1600 |
| accessory / separate part category | spare part for Compact NS630b...1600 |
| [Ith] conventional free air thermal current | 6 A |
| auxiliary contacts type | standard |
| device application | breaker status monitoring |
| local signalling | ON/OFF indication for open/close |
| minimum load | 100 mA at 24 V DC |
| signal contacts composition | 1 NO/NC |
