Schneider Electric

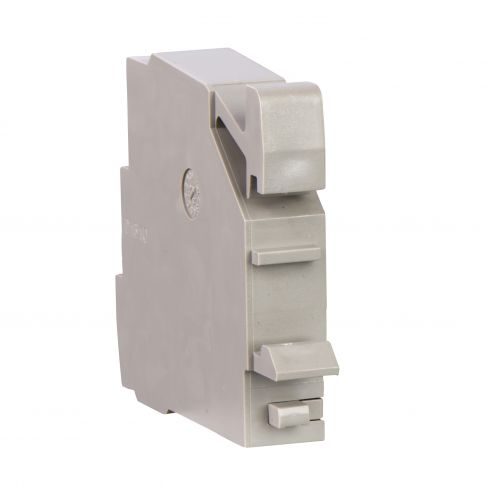

Compact NS switches disconnectors auxiliary contact - connected position NO/NC 6 A - 240 V - Masterpact NT/NW - 33751
Out of stock
SKU
33751
More Information
| Attribute | Value |
|---|---|
| SKU | 33751 |
| range of product | ComPact NS630b...1600 |
| product or component type | MCCB |
| mounting mode | drawout |
| device short name | connected position contact |
| range | Aksesoris |
| [Ie] rated operational current | AC-12: 6 A at 690 V AC 50/60 Hz, DC-12: 0.8 A at 125 V DC, DC-12: 2.5 A at 24/48 V DC, AC-12: 8 A at 240 V AC 50/60 Hz, AC-12: 8 A at 380 V AC 50/60 Hz, AC-12: 8 A at 480 V AC 50/60 Hz, DC-12: 0.3 A at 150 V DC |
| range compatibility | ComPact NS630b...1600, Masterpact NW, MasterPact NT, Masterpact NW DC |
| auxiliary contacts type | standard |
| device application | monitoring |
| minimum load | 100 mA at 24 V |
| signal contacts composition | 1 NO/NC |
| auxiliary contacts operation | connected position |
