Schneider Electric

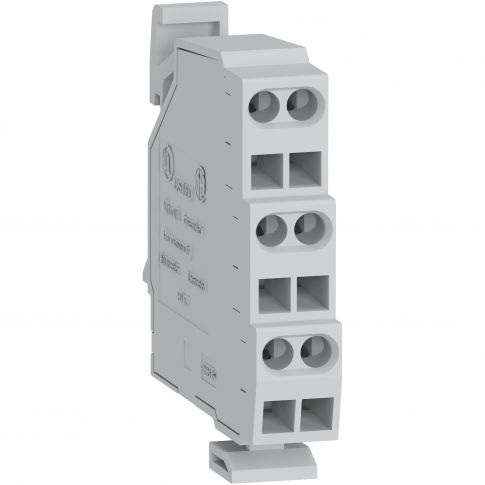

Compact NS switches disconnectors carriage auxiliary switch NO/NC 6 A - 240 V - for Masterpact NT/NW NS630b..1600 - 33170
Out of stock
SKU
33170
More Information
| Attribute | Value |
|---|---|
| SKU | 33170 |
| range of product | ComPact NS630b...1600 |
| product or component type | MCCB |
| mounting mode | drawout |
| device short name | carriage switch |
| range | Aksesoris |
| [Ie] rated operational current | DC-12: 0.3 A at 250 V DC, AC-12: 6 A at 690 V AC 50/60 Hz, DC-12: 0.8 A at 125 V DC, DC-12: 2.5 A at 24/48 V DC, AC-12: 8 A at 240 V AC 50/60 Hz, AC-12: 8 A at 380 V AC 50/60 Hz, AC-12: 8 A at 480 V AC 50/60 Hz |
| range compatibility | ComPact NS630b...1600, Masterpact NW, MasterPact NT, Masterpact NW DC |
| accessory / separate part category | spare part for Compact NS630b...1600, spare part for Masterpact NW, spare part for Masterpact NT, spare part for Masterpact NW DC |
| auxiliary contacts type | standard |
| device application | monitoring |
| minimum load | 100 mA at 24 V |
| signal contacts composition | 1 NO/NC |
| auxiliary contacts operation | connected position, test position, disconnected position |
