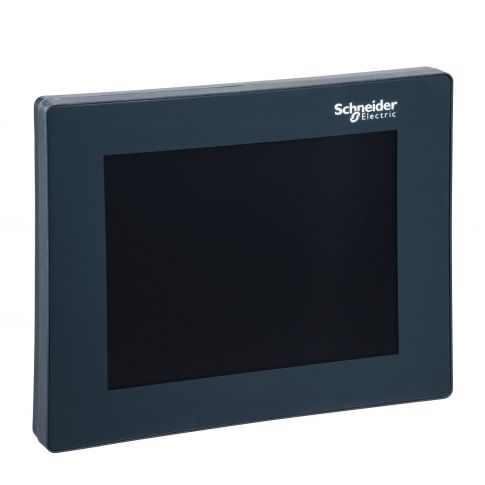

Compact NS switches disconnectors front display module FDM 128 - 163*129 mm - IP54 - LV434128
This FDM128 is an intelligent Ethernet switchboard display module and it is part of EnerlinX communication system.
This display unit is compatible with Masterpact, Compact, PowerPact and PowerTag Link devices.
It collects data from up to 8 devices over Ethernet, for a possibility of up to 160 PowerTag connected.
FDM128 displays the measurements, alarms, and operating assistance data.
It has a color TFT LCD touch screen, with a high resolution (320 pixels x 240 pixels).
The FDM128 is equipped with a 24VDC terminal block and one RJ45 socket for Ethernet connection.
It is easily installed in a switchboard through a standard 22mm door hole, and its dimensions are 129mm x 96mm x 56,5mm.
The operating temperature range is between -10°C to 55°C, and the protection degree is IP65 on the front face.
The FDM128 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels.
The FDM128 firmware can be updated using EcoStruxure Power Commission software.
| Attribute | Value |
|---|---|
| SKU | LV434128 |
| ambient air temperature for operation | -10-55 °C |
| range of product | ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200 |
| product or component type | Air Circuit Breaker |
| mounting mode | flush mounting |
| standards | CE, CSA, UL |
| device short name | FDM128 |
| range | Smart Panel |
| range compatibility | ComPact NSX, ComPact NS630b...1600, ComPact NS1600b...3200, Masterpact NW, MasterPact NT, PowerPact L, PowerPact J, PowerPact H, PowerPact P, PowerPact R, Masterpact MTZ, Acti 9 Smartlink smart communication module |
| product name | Enerlin'X FDM |
| accessory / separate part category | spare part for Compact NS630b...1600, spare part for Compact NS1600b...3200, display and signalling accessory |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| function of module | remote control, view network, metering, display alarm |
| height | 129 mm |
| mounting support | surface mount with kit |
| compatibility code | FDM128 |
| width | 163 mm |
| depth | 56.5 mm |
| IP degree of protection | IP54, IP65 front face: |
| control type | remote control |
| display type | active matrix colour TFT LCD with LED backlight |
| maximum power consumption in W | 6.8 W |
| display resolution | 320 x 240 pixels QVGA |
| view angle horizontal x vertical | 70 x 80° |
