Schneider Electric

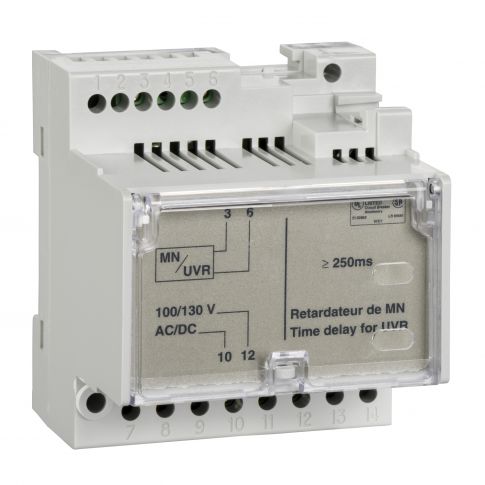

Compact NS switches disconnectors non - adjustable time delay relay for voltage release MN - 200/250 V AC/DC - 33685
Out of stock
SKU
33685
More Information
| Attribute | Value |
|---|---|
| SKU | 33685 |
| range of product | ComPact NS630b...1600, ComPact NS1600b...3200 |
| product or component type | MCCB |
| mounting mode | external mounting |
| device short name | MN delay unit |
| range | Aksesoris |
| [Uc] control circuit voltage | 200...250 V AC 50/60 Hz, 200...250 V DC |
| range compatibility | ComPact NS630b...1600, ComPact NS1600b...3200, Masterpact NW, MasterPact NT, Masterpact NW DC, Masterpact NW UL 489, Masterpact NT UL 489 |
| voltage release type | undervoltage release |
| accessory / separate part category | spare part for Compact NS630b...1600, spare part for Compact NS1600b...3200 |
| supply holding power | 4.5 VA |
| supply inrush power | 200 VA |
| device application | control |
| response time | 0.25 s |
| threshold tripping voltage | 0.35...0.7 Un open, 0.85 Un close |
| time delay range | 0.25 s |
| impulse duration | 200 ms |
Technical Documents
