Compact NS switches disconnectors voltage release MX or XF - 100..130 V DC/AC 50/60 Hz - 33661
Out of stock
SKU
33661
Details

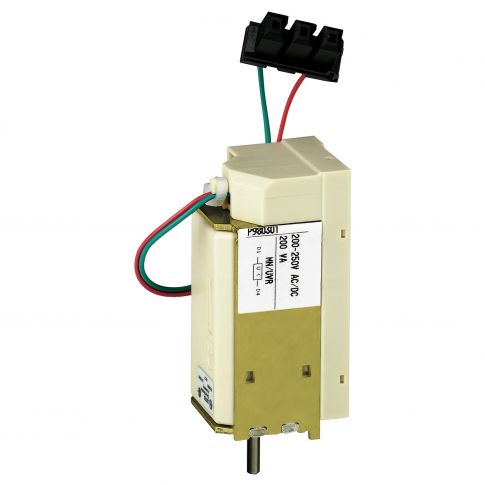

This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices.
Its rated voltage is 100VDC to 130VDC or 100VAC to 130VAC 50/60Hz.
It is an auxiliary used for emergency off or remote opening applications.
This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un.
It complies with IEC 60947-2 standard.
Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.
More Information
| Attribute | Value |
|---|---|
| SKU | 33661 |
| range of product | ComPact NS630b...1600, ComPact NS1600b...3200 |
| product or component type | MCCB |
| mounting mode | fixed |
| device short name | MX |
| range | Aksesoris |
| [Uc] control circuit voltage | 100...130 V AC 50/60 Hz, 100...130 V DC |
| range compatibility | ComPact NS630b...1600, ComPact NS1600b...3200, Masterpact NW, MasterPact NT |
| voltage release type | shunt trip release |
| accessory / separate part category | spare parts for Masterpact NT, spare parts for Masterpact NW, spare parts for Compact NS1600b...3200, spare parts for Compact NS630b...1600 |
| supply holding power | 4.5 VA |
| device application | control |
| response time | 50 ms (Compact NS630b...1600), 50 ms (Compact NS1600b...3200), 55 ms (Masterpact NT), 70 ms (Masterpact NW) |
| threshold tripping voltage | 0.7...1.1 x Un |
