Schneider Electric

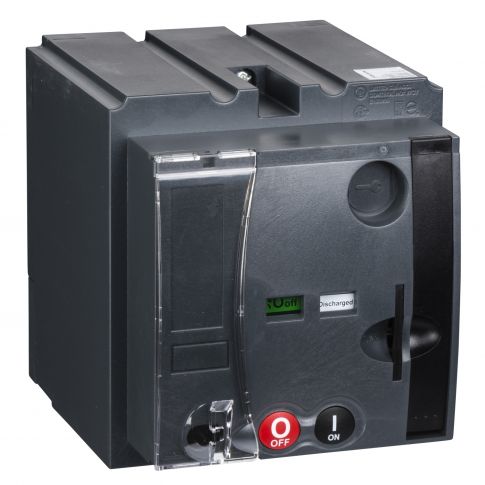

Compact NSX <630 motor-mechanism - MT400/630 - 208..277 V 60Hz / 220..240 V 50/60Hz - LV432641
In stock
SKU
LV432641
Details
This is a communicating motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging.
It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations.
It provides a double insulation of the front face and all indications remain visible and accessible.
The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz.
The consumption is less than 500VA.
Padlocking of the device remains possible.
More Information
| Attribute | Value |
|---|---|
| SKU | LV432641 |
| range of product | ComPact NSX400...630, ComPact NSX400...630 DC |
| product or component type | MCCB |
| mounting mode | fixed |
| device short name | MT400/630 |
| range | Aksesoris |
| [Uc] control circuit voltage | 208...277 V AC 60 Hz, 220...240 V AC 50/60 Hz |
| range compatibility | PowerPact Multistandard, ComPact NSX400, ComPact NSX630, Compact NSX400 DC, Compact NSX630 DC, EasyPact CVS400, EasyPact CVS630, PowerPact L |
| [In] rated current | 400 A, 630 A |
| device application | automatic spring charging |
| control type | standard |
| response time | < 700 ms (opening), < 80 ms (closing) |
| maximum power consumption in VA | 500 VA closing, 500 VA opening |
| control signal type | maintained, impulse |
| locking options description | padlocking in OFF position, 1 to 3 padlocks Ø 5 to Ø 8 |
| maximum operating frequency | 4 per minute |
