Schneider Electric

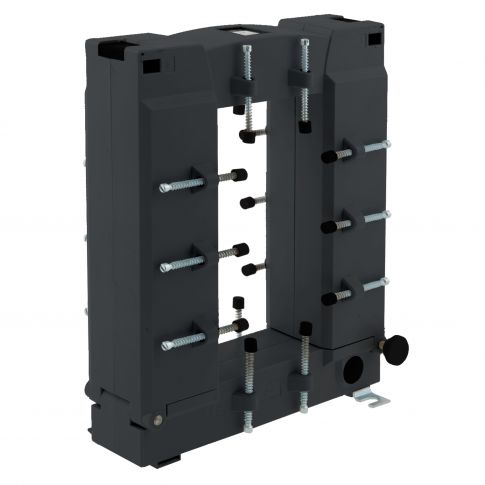

Current transformer TI PowerLogic Split Core Current Transformer - Type GJ, for bar - 2500A / 5A - METSECT5GJ250
Out of stock
SKU
METSECT5GJ250
Details
This current transformer, standard for busbar, has a line rated current of 2500 A and a secondary current rating of 5 A.
This current transformer do have a 85 mm x 165 mm opening.
Compatible with a single output for bar: 80 mm x 160 mm.
Burden and accuracy class as follows: class 0.5 maximum power: 10 VA.
More Information
| Attribute | Value |
|---|---|
| SKU | METSECT5GJ250 |
| ambient air temperature for storage | -25-70 °C |
| ambient air temperature for operation | -5-40 °C |
| product or component type | Meter & Manajemen Energi |
| mounting mode | by screws |
| standards | VDE 0414, DIN 42600-2, DIN EN 61869-1, DIN EN 61869-2 |
| range | Current Transformer TI |
| product name | CT |
| [Ith] conventional free air thermal current | 2500 A |
| permissible current | 150000 A during 1 s |
| opening of bars | 80 x 160 |
| secondary current | 5 A |
| current transformer ratio | 2500/5 |
| maximum safety factor | 10 |
| height | 243 mm outside:, 165 mm inner: |
| mounting support | DIN rail, fastened onto a surface with screws |
| width | 195 mm outside:, 85 mm inner: |
| depth | 79 mm |
| [In] rated current | 2500 A |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV |
| electrical insulation class | class E |
| accuracy class | class 0.5 at 10 VA |
| current transformer type | standard for busbar, split core |
