Schneider Electric

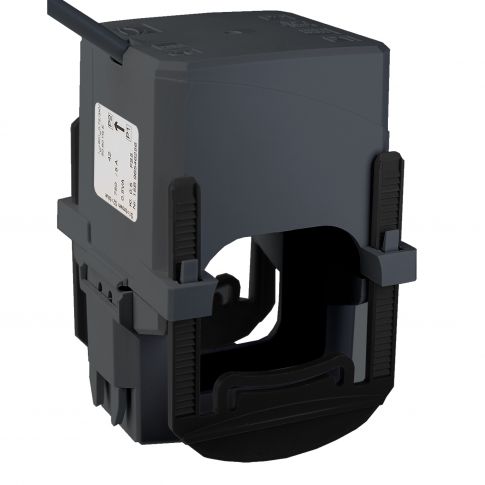

Current transformer TI PowerLogic Split Core Current Transformer - Type HJ, for cable - 0800A / 5A - METSECT5HJ080
Out of stock
SKU
METSECT5HJ080
Details
This current transformer, standard for cable, has a line rated current of 800 A and a secondary current rating of 5 A.
This current transformer allow a maximum cable outer diameter of 42.4 mm.
Burden and accuracy class as follows: class 0.5 maximum power: 2.5 VA.
More Information
| Attribute | Value |
|---|---|
| SKU | METSECT5HJ080 |
| ambient air temperature for storage | -25-70 °C |
| ambient air temperature for operation | -5-50 °C |
| product or component type | Meter & Manajemen Energi |
| mounting mode | clip-on |
| standards | VDE 0414, DIN EN 61869-1, DIN EN 61869-2, DIN EN 60044-1 |
| range | Current Transformer TI |
| product name | CT |
| [Ith] conventional free air thermal current | 960 A |
| permissible current | 48000 A during 1 s |
| secondary current | 5 A |
| current transformer ratio | 800/5 |
| maximum safety factor | 5 |
| connections - terminals | cable 2 cable(s) 0.5-1.5 mm² 0.5 m |
| height | 96 mm outside: |
| width | 67 mm outside: |
| [In] rated current | 800 A |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV |
| electrical insulation class | class E |
| accuracy class | class 0.5 at 2.5 VA |
| cable outer diameter | 42.4 mm |
| diameter | 42.4 mm inner: |
| current transformer type | split core, standard for cable |
