Current transformer TI tropicalised 1000 5 double output for bars 32x65 - METSECT5DA100
Out of stock
SKU
METSECT5DA100
Details

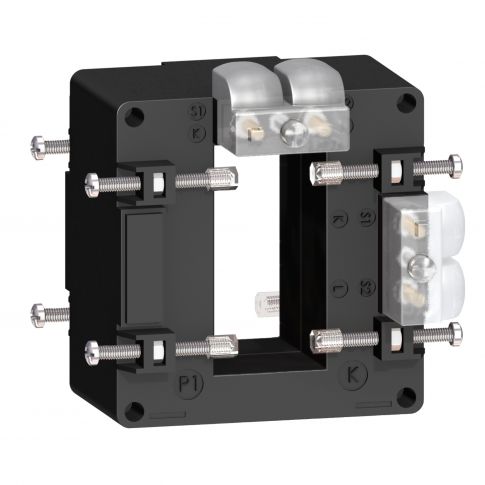

This current transformer, tropicalised for busbar, has a line rated current of 1000 A and a secondary current rating of 5 A.
This current transformer do have a 65 mm x 32 mm opening.
Compatible with a single output for bar: 65 mm x 32 mm.
Burden and accuracy class as follows: class 0.5 maximum power: 15 VA, class 1 maximum power: 20 VA.
More Information
| Attribute | Value |
|---|---|
| SKU | METSECT5DA100 |
| product certifications | EAC, CE |
| relative humidity | 0-95 % |
| ambient air temperature for operation | -25-60 °C |
| range of product | PowerLogic CT |
| product or component type | Meter & Manajemen Energi |
| net weight | 0.606 kg |
| mounting mode | insulated locking screw |
| standards | VDE 0414, IEC 61869-2 |
| range | Current Transformer TI |
| [Uimp] rated impulse withstand voltage | 3 kV |
| product name | CT |
| [Ith] conventional free air thermal current | 60 kA |
| opening of bars | 65 x 32 |
| secondary current | 5 A |
| current transformer ratio | 1000/5 |
| maximum safety factor | 5 |
| height | 94 mm outside:, 32 mm inner: |
| mounting support | busbar |
| compatibility code | DA |
| width | 90 mm outside:, 65 mm inner: |
| depth | 40 mm frame:, 87 mm total: |
| IP degree of protection | IP20 |
| [In] rated current | 1000 A |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| electrical insulation class | class B |
| accuracy class | class 0.5 at 15 VA, class 1 at 20 VA |
| current transformer type | tropicalised for busbar |
| dynamic withstand current | 2.5 Ith |
| sealing | with |
