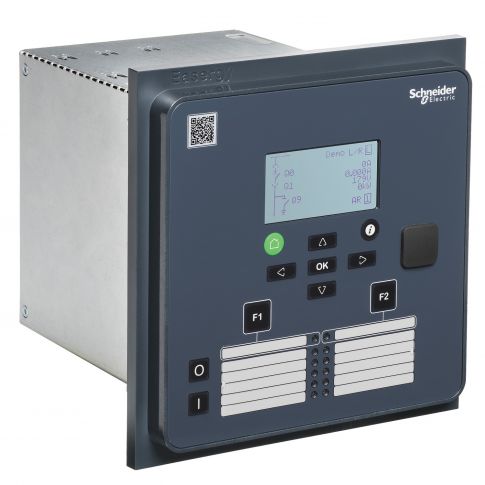

Easergy P3 Easergy P3U 3CT 1Io 1VT 10DI 5DO 48-230V DI110V 2RJ45 - REL52018
Out of stock
SKU
REL52018
More Information
| Attribute | Value |
|---|---|
| SKU | REL52018 |
| relative humidity | 0-95 %, without condensation |
| ambient air temperature for storage | -40-70 °C |
| ambient air temperature for operation | -40-65 °C |
| environmental characteristic | exposure to dry heat Bb tests conforming to EN/IEC 60068-2-2, exposure to cold Ad tests conforming to EN/IEC 60068-2-1, exposure to damp heat in service Db tests conforming to EN/IEC 60068-2-30, exposure to damp heat in service Cab tests conforming to EN/IEC 60068-2-78 |
| range of product | Easergy P3 |
| product or component type | Relay Proteksi Digital |
| net weight | 2.5 kg maximum |
| standards | IEC |
| device short name | P3U20-5AAA2ACAA |
| range | Easergy P3 |
| mechanical robustness | shocks: Ea conforming to IEC 60068-2-27, bumps (level: class II) conforming to IEC 60255-21-2, vibrations (level: class II) conforming to IEC 60255-21-1, seismic tests method A (level: class II) conforming to IEC 60255-21-3, vibrations: Fc conforming to IEC 60068-2-6, shocks (level: class II) conforming to IEC 60255-21-2, bumps: Ea conforming to IEC 60068-2-27 |
| [Us] rated supply voltage | 48...230 V AC/DC |
| electromagnetic compatibility | emission tests class A conforming to CISPR 11, emission tests class A conforming to CISPR 22, EMC immunity conforming to EN/IEC 61000-4-18, EMC immunity conforming to EN/IEC 61000-4-11, emission tests conforming to IEC/EN 60255-26 ed. 3, EMC immunity conforming to IEC/EN 60255-26 ed. 3, EMC immunity level 4 conforming to EN/IEC 61000-4-2, EMC immunity level 3 conforming to EN/IEC 61000-4-5, EMC immunity conforming to EN/IEC 61000-4-8, EMC immunity level 5 conforming to EN/IEC 61000-4-9, EMC immunity conforming to EN/IEC 61000-4-29, EMC immunity level 3 conforming to EN/IEC 61000-4-3, EMC immunity level 4 conforming to EN/IEC 61000-4-4, EMC immunity level 3 conforming to EN/IEC 61000-4-6, EMC immunity conforming to EN/IEC 61000-4-17 |
| type of measurement | frequency, current 3-phase, current zero sequence, current positive sequence, current negative sequence, current ratio of negative and positive, voltage zero sequence, earth fault reactance, current phasor diagram view, current 2nd, 15th harmonics with THD, condition monitoring CB wear |
| relay application | universal |
| analogue output number | 0 |
| network and machine diagnosis type | event recording, disturbance recording, tripping context |
| number of key | 2 customizable |
| redundancy communication port protocol | RSTP, PRP |
| operating threshold | 110...230 V AC/DC |
| time synchronisation protocol | SNTP |
| switchgear diagnosis type | trip circuit supervision ANSI code: TCS, CT supervision ANSI code: 60 |
| software name | EcoStruxure Power Device, eSetup Easergy Pro |
| single line diagram | 2 controlled + 4 displayed |
| connections - terminals | screw removable (digital input/output), pin removable (current transformer), pin removable (voltage transformer) |
| height | 169.5 mm |
| width | 170 mm |
| depth | 205 mm |
| operating altitude | 2000 m |
| IP degree of protection | IP54 conforming to IEC 60529 |
| control type | switchgear control and monitoring, programmable switchgear interlocking, local control on single-line diagram, local control with I/O keys, local/remote control, 2 function keys, mobile application with Easergy SmartApp, web-server, programmable logic |
| local signalling | 4 LEDs, 8 LEDs programmable |
| integrated connection type | USB port 1 front, RJ45 2 rear |
| protection type | phase overcurrent 50/51, earth fault overcurrent 50N/51N, directional earth fault 67N, transient earth fault 67NI, capacitor bank unbalance 51C, broken conductor 46 I2/I1, cold load pick-up, switch ON to fault (SOTF), breaker failure 50BF, recloser 79, phase undercurrent 37, excessive starting time, locked rotor 48/51LR, motor restart inhibition 66, capacitor overvoltage 59C, negative sequence overcurrent 46, earth fault overvoltage 59N, rate of change of frequency 81R, lockout relay 86, H2 detection 68H2, H5 detection 68H5, programmable stages 99, programmable curve |
| protective treatment | conformal coating |
| number of outputs | 1 watchdog, 5 |
| communication port protocol | Ethernet/IP, Modbus TCP, IEC 61850 ed. 1, IEC 61850 ed. 2, IEC 60870-5-101, DNP3 TCP |
| cybersecurity | password protection, port hardening |
| analogue input number | 0 |
| setting | 4 |
| input type | : 1/5 A CT phase current 3, : 1/5 A CT residual current 1, : 100 V/110 V VT voltage 1 |
| web server | embedded HTTP server |
| monitoring function | trip circuit supervision 74, circuit breaker monitoring, relay self-monitoring |
| digital input number | 10 |
| number of sensors | 0 arc sensor(s), 0 temperature sensor(s) |
| arc flash protection | no |
