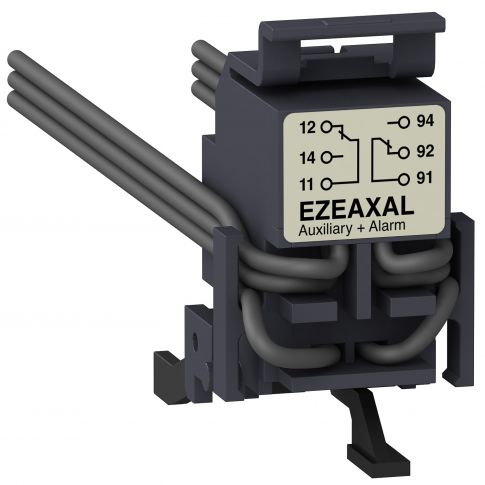

EasyPact EZC auxiliary contact - for Easypact EZ250 - alarm - EZEAXAL
In stock
SKU
EZEAXAL
Details
This composition is auxiliary and alarm switch(AL+AX) as the part of indication contact for EasyPact EZC250 circuit breaker.
The AL+AX can indicate the circuit breaker trip or not, and contact status due to some fault.
It is used for indications,electrical locking,relaying etc.
This electrical auxiliaries are snapped in a place,when opened front cover.
More Information
| Attribute | Value |
|---|---|
| SKU | EZEAXAL |
| range | Aksesoris |
| product or component type | MCCB |
| device application | alarm, signalling |
| device short name | AL, AX |
| [Ie] rated operational current | DC-12: 2.5 A at 48 V DC, AC-12: 3 A at 250 V AC 50/60 Hz, DC-12: 0.4 A at 125 V DC, DC-12: 4 A at 24 V DC, DC-14: 0.2 A at 250 V DC, DC-14: 0.4 A at 125 V DC, DC-14: 1 A at 48 V DC, DC-14: 3 A at 24 V DC, AC-12: 5 A at 125 V AC 50/60 Hz, AC-12: 5 A at 24 V AC 50/60 Hz, AC-12: 5 A at 48 V AC 50/60 Hz, AC-15: 2 A at 250 V AC 50/60 Hz, AC-15: 3 A at 125 V AC 50/60 Hz, AC-15: 5 A at 24 V AC 50/60 Hz, AC-15: 5 A at 48 V AC 50/60 Hz, DC-12: 0.2 A at 250 V DC |
| compatibility code | AL, AX |
| [Ith] conventional free air thermal current | 5 A |
