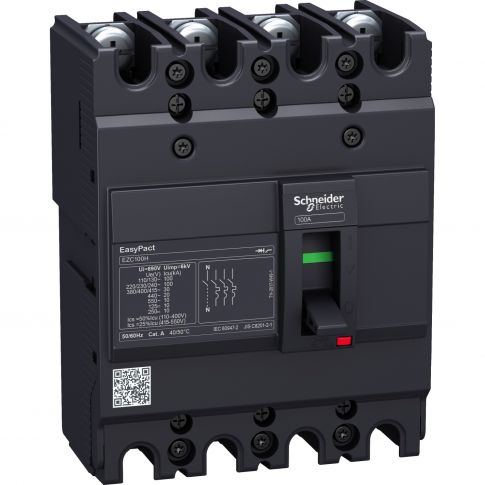

EasyPact EZC circuit breaker EZC100N - TMD - 15 A - 4 poles 3d - EZC100N4015
Out of stock
SKU
EZC100N4015
More Information
| Attribute | Value |
|---|---|
| SKU | EZC100N4015 |
| range | EasyPact EZC |
| product or component type | MCCB |
| [In] rated current | 100 A at 40 °C |
| trip unit technology | thermal-magnetic |
| breaking capacity | 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2, 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2, 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 415 V AC 50/60 Hz conforming to IEC 60947-2, 18 kA Icu at 380...400 V AC 50/60 Hz conforming to IEC 60947-2 |
| ambient air temperature for operation | -25-70 °C |
| ambient air temperature for storage | -35-85 °C |
| control type | toggle |
| mounting mode | fixed |
| mechanical durability | 8500 cycles |
| IK degree of protection | IK07 conforming to EN 50102 |
| network frequency | 50/60 Hz |
| trip unit rating | 15-15 A at 50 °C |
| earth-leakage protection | without |
| breaking capacity code | N |
| downside connection | front |
| upside connection | front |
| [Ue] rated operational voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2, 250 V DC conforming to IEC 60947-2 |
| product name | EasyPact EZC |
| poles description | 4P |
| protection type | short-circuit protection, overload protection |
| standards | JIS C8201-2-2, EN/IEC 60947-2, EN/IEC 60947-1, GB/T 14048.2 |
| device application | distribution |
| [Ics] rated service breaking capacity | 2.5 kA at 125 V DC conforming to IEC 60947-2, 2.5 kA at 250 V DC conforming to IEC 60947-2, 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 7.5 kA at 415 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 110...130 V AC 50/60 Hz conforming to IEC 60947-2, 9 kA at 380...400 V AC 50/60 Hz conforming to IEC 60947-2 |
| electrical durability | category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| connection pitch | 25 mm |
| device short name | Easypact EZC100N |
| network type | AC, DC |
| pollution degree | 3 conforming to IEC 60947 |
| protected poles description | 3t |
| trip unit name | TM-D |
| local signalling | positive contact indication |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| height | 130 mm |
| depth | 60 mm |
| width | 100 mm |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| compatibility code | EZC100 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| utilisation category | category A |
| suitability for isolation | yes conforming to IEC 60947-2 |
