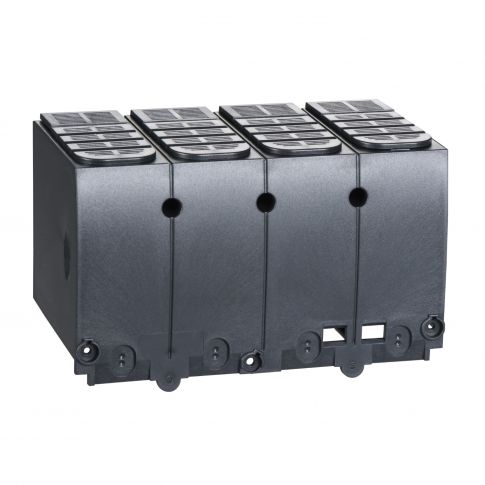

Interpact INS/INV long terminal shield - 4 poles - pitch 45 mm - <= 630A - LV432594
Out of stock
SKU
LV432594
Details
This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630.
This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars.
It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices.
It allows to reach the clearance distance requested by IEC 60947-2 standard.
The pitch is 45mm.
It provides IP40 degree of protection and IK07 mechanical impact protection.
More Information
| Attribute | Value |
|---|---|
| SKU | LV432594 |
| range of product | ComPact NSX400...630, ComPact NSX400...630 DC |
| product or component type | MCCB |
| range | Aksesoris |
| range compatibility | Compact INS, Compact INV, ComPact NSX400, ComPact NSX630, Compact NSX400 DC, Compact NSX630 DC, EasyPact CVS400, EasyPact CVS630 |
| compatibility code | terminal shields |
| IP degree of protection | IP40 |
| poles description | 4P |
| Quantity per set | 1 |
| connection pitch | 45 mm |
| accessory / separate part type | insulation accessories |
