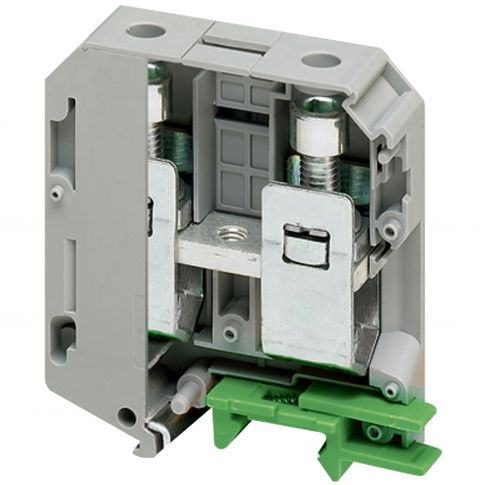

Linergy TR Linergy passthrough terminal block - 70mm² 192A single-level 1x1 screw - grey - NSYTRV702
Linergy TR is terminal block for Linergy.
It belongs to linergy passthrough terminal block with 70 mm² nominal cross section.
The rated operational voltage is 600V conforming to cURus, 1000V conforming to CSA and 1000V conforming to EN/IEC 60947-7-1.
The rated current is 192A conforming to EN/IEC 60947-7-1 and 192A conforming to CSA and cURus.
It has grey surface treatment.
Mounting by clip-on and sideways connection by single-level 1x1 screw terminals.
It could be connection and disconnection by screwdriver.
It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys.
Sold in lots of 10 units.
Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21.
Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).
It is compliant with Green Premium (RoHS/REACH).
| Attribute | Value |
|---|---|
| SKU | NSYTRV702 |
| product certifications | EAC, GL, CSA, DNV, ATEX, VDE, cURus, LR, IEC-Ex |
| ambient air temperature for operation | -40-130 °C conforming to IEC 60216-1, -40-130 °C conforming to VDE 0304-T21 |
| cable cross section | 25-70 mm², solid cable with cable end, 25-70 mm², solid cable without cable end, 25-70 mm², flexible cable with cable end, 16-95 mm², flexible cable without cable end |
| surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| range of product | Linergy |
| product or component type | Panel Industri & Kontrol Temperatur |
| net weight | 195 g |
| mounting mode | clip-on |
| device short name | TRV |
| range | Terminal Block |
| wire stripping length | 24 mm |
| product compatibility | Spacial enclosures |
| range compatibility | TeSys, Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma |
| product name | Linergy TR |
| accessory / separate part category | connection accessory |
| dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| connection position | sideways |
| tool type | connection: screwdriver, disconnection: screwdriver |
| connections - terminals | 1 x screw terminal: upstream (M8), 1 x screw terminal: downstream (M8) |
| height | 87.5 mm |
| compatibility code | terminal block |
| width | 20.3 mm |
| dielectric strength | 1000 V conforming to IEC 60243-1 |
| [In] rated current | 192-192 A conforming to EN/IEC 60947-7-1, 192-192 A CSA, 192-192 A cURus |
| colour | grey |
| tightening torque | 8-10 N.m |
| [Ue] rated operational voltage | 1000 V conforming to EN/IEC 60947-7-1, 600 V cURus, 1000 V CSA |
| material | polyamide 6/6: insulating case, copper alloy: connector and screw, copper alloy: commoning link, chromium-nickel steel: spring |
| number of terminals | 2 |
| Quantity per set | set of 10 |
| flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| length | 70.5 mm |
| terminal block type | passthrough |
| terminal block level | 1 |
| number of measurement input | 1 |
| dielectric constant | 3.7 at 1 MHz |
| nominal cross section | 70 mm² |
| creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
