Schneider Electric

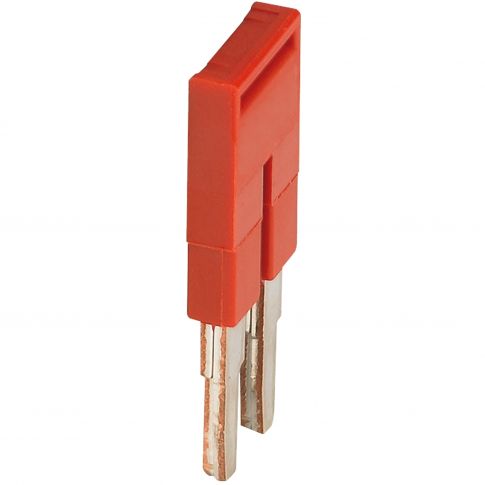

Linergy TR NSYTR plug-in bridge 2 ways for 2.5mm² terminals - NSYTRAL22
Out of stock
SKU
NSYTRAL22
Details
Linergy NSYTR plug-in bridge for terminal block.
It has red surface treatment.
It provides 2 ways for 2.5mm² terminals.
It is compatible with TRV screw terminal, TRH IDC, TRP push-in and TRR spring terminal block.
Sold in lots of 50 units.
It is compliant with Green Premium (RoHS/REACH).
More Information
| Attribute | Value |
|---|---|
| SKU | NSYTRAL22 |
| cable cross section | 2.5-2.5 mm² |
| range of product | Linergy |
| product or component type | Panel Industri & Kontrol Temperatur |
| net weight | 1.7 g |
| device short name | TRA |
| range | Aksesoris |
| product compatibility | TRV screw terminal terminal block, TRP push-in terminal block, TRH IDC terminal block, TRR spring terminal - passthrough terminal block, TRR spring terminal - protective earth terminal block, TRR spring terminal - blade disconnect terminal block, TRR spring terminal - removable carrier disconnect terminal block |
| product name | Linergy TR |
| accessory / separate part category | connection accessory |
| colour | red |
| number of terminals | 3, 2, 4 |
| Quantity per set | set of 50 |
| number of ways | 2 ways |
| terminal block level | 1, 3, 2 |
| number of measurement input | 2, 1, 3, 4, 6 |
