Schneider Electric

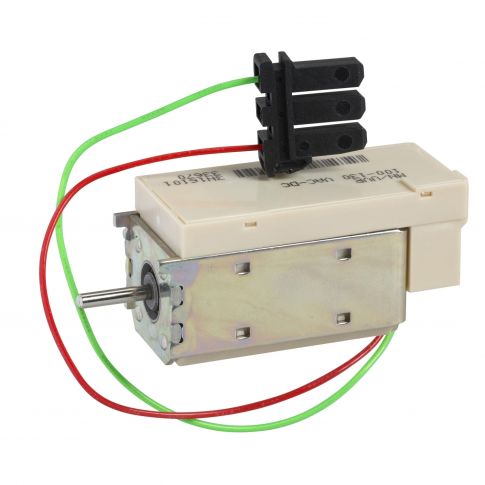

Masterpact MT voltage release XF - 200..250 V DC/AC 50/60 Hz - 47353
In stock
SKU
47353
More Information
| Attribute | Value |
|---|---|
| SKU | 47353 |
| range of product | Masterpact NW, Masterpact NT, Masterpact NW DC |
| product or component type | Air Circuit Breaker |
| mounting mode | fixed |
| device short name | XF |
| range | Aksesoris |
| [Uc] control circuit voltage | 200...250 V AC 50/60 Hz, 200...250 V DC |
| range compatibility | Masterpact NW, MasterPact NT |
| supply holding power | 4.5 VA |
| device application | control |
| response time | 70 ms at 800 A (Masterpact NW), 70 ms at 1000 A (Masterpact NW), 70 ms at 1250 A (Masterpact NW), 70 ms at 1600 A (Masterpact NW), 70 ms at 2000 A (Masterpact NW), 70 ms at 2500 A (Masterpact NW), 70 ms at 3200 A (Masterpact NW), 70 ms at 4000 A (Masterpact NW), 80 ms at 4000 A (Masterpact NW), 80 ms at 5000 A (Masterpact NW), 80 ms at 6300 A (Masterpact NW), 55 ms (Masterpact NT) |
| threshold tripping voltage | 0.85...1.1 Un |
