Schneider Electric

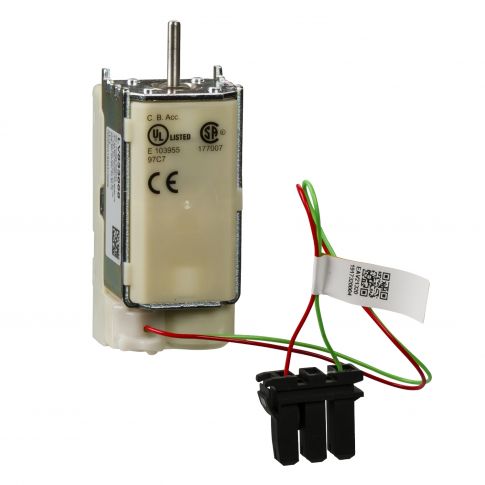

Masterpact MTZ MN undervoltage release, Masterpact MTZ1/2/3, 200/250 VAC, 200/250 VDC, spare part - LV833671SP
In stock
SKU
LV833671SP
More Information
| Attribute | Value |
|---|---|
| SKU | LV833671SP |
| product or component type | Air Circuit Breaker |
| mounting mode | fixed/drawout |
| device short name | MN |
| range | MasterPact MTZ |
| [Uc] control circuit voltage | 200...250 V AC 50/60 Hz, 200...250 V DC |
| range compatibility | Masterpact MTZ2 circuit breaker, Masterpact MTZ3 circuit breaker, Masterpact MTZ1 circuit breaker |
| voltage release type | instantaneous |
| operating time | 45 ms on opening for Masterpact MTZ1, 95 ms on opening for Masterpact MTZ2, 95 ms on opening for Masterpact MTZ3 |
| supply holding power | 4.5 W |
| device application | safety |
| control type | standard |
| provided equipment | 1 instruction sheet |
| threshold tripping voltage | 0.35...0.7 Un opening, 0.85 Un closing |
| offer type | spare part |
Technical Documents
