Schneider Electric

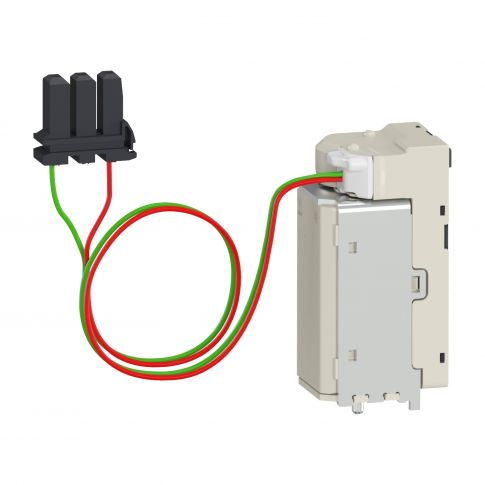

Masterpact MTZ MX or XF standard coil, Masterpact MTZ1/2/3, 200/250 VAC, 200/250 VDC, spare part - LV833662SP
In stock
SKU
LV833662SP
More Information
| Attribute | Value |
|---|---|
| SKU | LV833662SP |
| product or component type | Air Circuit Breaker |
| mounting mode | fixed/drawout |
| range | MasterPact MTZ |
| [Uc] control circuit voltage | 200...250 V AC 50/60 Hz, 200...250 V DC |
| range compatibility | Masterpact MTZ2 circuit-breaker, Masterpact MTZ3 circuit-breaker, Masterpact MTZ1 circuit-breaker |
| voltage release type | closing coil, opening coil |
| operating time | 60 ms on opening for Masterpact MTZ1, 60 ms on opening for Masterpact MTZ2, 60 ms on opening for Masterpact MTZ3, 65 ms on closing for Masterpact MTZ1, 80 ms on closing for Masterpact MTZ2, 90 ms on closing for Masterpact MTZ3 |
| supply holding power | 4.5 W |
| device application | control |
| provided equipment | 1 instruction sheet |
| threshold tripping voltage | 0.7...1.1 Un on opening, 0.85...1.1 Un on closing |
| offer type | spare part |
