Schneider Electric

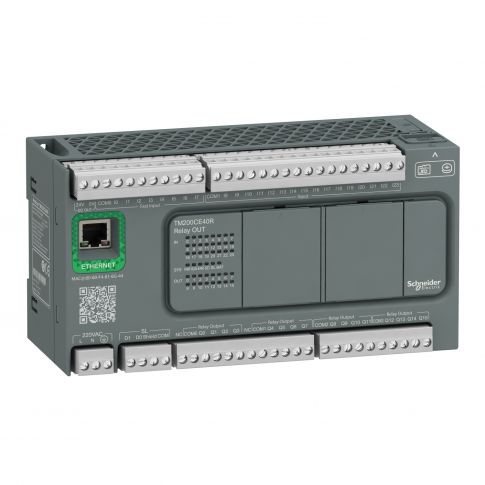

Modicon Easy M200 Controller 40 IO relay+Ethernet - TM200CE40R
Out of stock
SKU
TM200CE40R
Details
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262.
The analogue output module provides 2 outputs with 11bit + sign and 12bit resolution.
It is an output module with a rated supply voltage of 24V DC and a current consumption of 70mA at 24V DC via external supply full load.
This product is capable of controlling variable speed drives or any device equipped with a current or voltage input.
There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC.
It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs.
It is an IP20 rated product.
Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height).
It weighs 0.115kg.
This product is certified by CE.
It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.
This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller.
It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount.
Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism.
A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers.
Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
More Information
| Attribute | Value |
|---|---|
| SKU | TM200CE40R |
| product certifications | CSA, RCM, cULus, IACS E10 |
| relative humidity | 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage) |
| ambient air temperature for storage | -25-70 °C |
| pollution degree | <= 2 |
| ambient air temperature for operation | 0-55 °C (horizontal installation) |
| voltage state 1 guaranteed | >= 15 V for input |
| discrete output voltage | 24 V DC, 220 V AC |
| maximum number of I/O expansion module | 4 with 128 discrete output(s) for transistor output, 4 with 80 discrete output(s) for relay output |
| range of product | Easy Modicon M200 |
| product or component type | Relay & Power Supply |
| net weight | 0.512 kg |
| standards | EN/IEC 61010-2-201, EN/IEC 61131-2 |
| mechanical durability | 20000000 cycles for relay output |
| range | Modicon Easy M200 |
| [Us] rated supply voltage | 100...240 V AC |
| electromagnetic compatibility | electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2, electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to EN/IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to EN/IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to EN/IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to EN/IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to EN/IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to EN/IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to EN/IEC 61000-4-5, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to EN/IEC 61000-4-3, conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011, conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to EN/IEC 55011, radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to EN/IEC 55011, radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011, magnetic field at power frequency - test level: 30 A/m conforming to EN/IEC 61000-4-8, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to EN/IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4 |
| electrical connection | mini B USB 2.0 connectorfor a programming terminal, RJ45 connectorfor connecting Ethernet network, removable screw terminal blockfor inputs, removable screw terminal blockfor outputs, removable screw terminal block, 4 terminal(s) for connecting the serial link1, removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply |
| immunity to microbreaks | 10 ms |
| discrete output type | relay normally open |
| backup time | 3 years at 25 °C (by interruption of power supply) |
| voltage state 0 guaranteed | <= 5 V for input |
| insulation | between input and internal logic at 500 V AC, between fast input and internal logic at 500 V AC, non-insulated between inputs, between output and internal logic at 1780 V AC, between output groups at 1780 V AC, between supply and internal logic at 1780 V AC, between input groups at 500 V AC |
| discrete output current | 2 A |
| memory capacity | 512 byte internal flash for backup of programs |
| maximum cable distance between devices | unshielded cable: <50 m for input, shielded cable: <10 m for fast input, shielded cable: <10 m for high speed input, unshielded cable: <150 m for output |
| network frequency | 50/60 Hz |
| height | 90 mm |
| output voltage limits | 30 V DC, 250 V AC |
| mounting support | top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 |
| marking | CE |
| width | 175 mm |
| depth | 70 mm |
| inrush current | 50 A |
| vibration resistance | 3.5 mm at 5-8.4 Hz on symmetrical rail, 1 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.7 Hz on panel mounting, 2 gn at 8.7-150 Hz on panel mounting |
| operating altitude | 0...2000 m |
| IP degree of protection | IP20 with protective cover in place |
| electrical durability | 100000 cycles AC-12, 240 V, 480 VA, resistive, 100000 cycles DC-12, 24 V, 48 W, resistive |
| local signalling | 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED per channel (green) for I/O state, 2 LEDs (green) for communication (LK/ACT 10/100) |
| response time | 35 µs turn-on, I2...I5 terminal(s) for fast input, 100 µs turn-off, I2...I5 terminal(s) for fast input, 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input, 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input, 100 µs turn-off, I8...I13 terminal(s) for regular input, 35 µs turn-on, I8...I13 terminal(s) for regular input, 10 ms turn-off, Q0...Q15 terminal(s) for relay output, 10 ms turn-on, Q0...Q15 terminal(s) for relay output, 125 µs turn-off, I14...I23 terminal(s) for regular input, 55 µs turn-on, I14...I23 terminal(s) for regular input |
| integrated connection type | USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with terminal block connector and RS485 interface, non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface, Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface, isolated serial link serial 2 with terminal block connector and RS485 interface |
| shock resistance | 15 gn for 11 ms, 30 gn for 6 ms |
| minimum load | 10 mA at 5 V DC for relay output |
| supply voltage limits | 85-264 V |
| communication port protocol | USB port: USB - SoMachine-Network, non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet Modbus TCP/IP: Modbus TCP/IP client/server |
| control signal type | quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode), pulse/direction at 100 kHz for fast input (HSC mode), single phase at 100 kHz for fast input (HSC mode), CW/CCW at 100 kHz for fast input (HSC mode) |
| discrete input voltage | 24 V |
| discrete output number | 16 relay |
| discrete input number | I2...I5: 4 fast input, I0, I1, I6, I7: 4 high speed input, I8...I23: 16 regular input |
| transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 12 Mbit/s for USB, 10/100 Mbit/s for bus length of 100-100 m for Ethernet Modbus TCP/IP |
| discrete input logic | sink or source (positive/negative) type 1 conforming to EN/IEC 61131-2 |
| switching frequency | 0.1 Hz with maximum load |
| regulation loop | adjustable PID regulator up to 14 simultaneous loops |
| input impedance | 3.3 kOhm for discrete input |
| clock drift | <= 90 s/month at 25-25 °C |
| power consumption in VA | 59-69 VA at 100...240 V AC (with max I/O) |
| discrete input current | 7 mA for input |
| storage altitude | 0-3000 m |
| discrete input voltage type | DC |
| battery type | BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s) |
| discrete I/O number | 40 |
| configurable filtering time | 0 ms for input, 3 ms for input, 12 ms for input |
| sensor power supply | 24-24 V DC at 300 mA supplied by the controller |
| execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| data storage equipment | 32 GB micro SD card (optional) |
| counting input number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| exct time for event task | 60 µs response time |
| maximum current per output common | 4 A |
| execution time per instruction | 0.2 µs Boolean |
