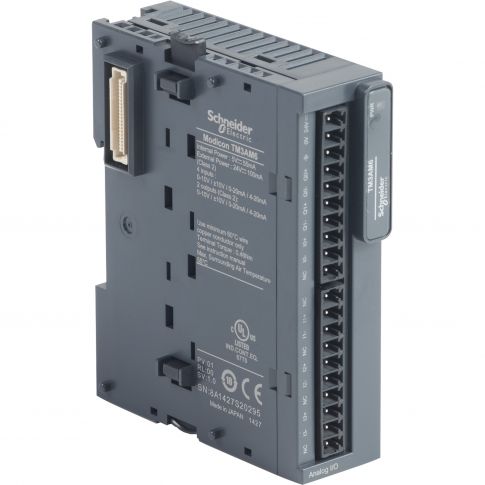

Modicon TM3 - 4 analog inputs, 2 analog output (screw) 24Vdc - TM3AM6
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262.
The analogue output module provides 2 outputs with 11bit + sign and 12bit resolution.
It is an output module with a rated supply voltage of 24V DC and a current consumption of 70mA at 24V DC via external supply full load.
This product is capable of controlling variable speed drives or any device equipped with a current or voltage input.
There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC.
It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs.
It is an IP20 rated product.
Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height).
It weighs 0.115kg.
This product is certified by CE.
It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.
This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller.
It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount.
Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism.
A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers.
Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Attribute | Value |
---|---|
SKU | TM3AM6 |
relative humidity | 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage) |
ambient air temperature for storage | -25-70 °C |
pollution degree | 2 |
ambient air temperature for operation | -10-55 °C horizontal installation, -10-35 °C vertical installation |
resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2 |
range of product | Modicon TM3 |
product or component type | Relay & Power Supply |
current consumption | 45 mA at 5 V DC via bus connector no load, 55 mA at 5 V DC via bus connector full load, 55 mA at 24 V DC via external supply no load, 100 mA at 24 V DC via external supply full load |
net weight | 0.11 kg |
standards | EN/IEC 61010-2-201, EN/IEC 61131-2 |
range | Modicon TM3 |
range compatibility | Modicon M221, Modicon M241, Modicon M251, Modicon M262 |
[Us] rated supply voltage | 24 V DC |
analogue input type | current 4...20 mA, current 0...20 mA, voltage 0...10 V, voltage - 10...10 V |
electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, outputs and supply |
immunity to microbreaks | 10 ms |
repeat accuracy | +/-0.5 %FS for input, +/-0.5 %FS for output |
analogue output number | 2 |
insulation | between output and supply at 1500 V AC, between output and internal logic at 500 V AC, between input and supply at 1500 V AC, between input and internal logic at 500 V AC |
conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
analogue input resolution | 12 bits, 11 bits + sign |
height | 90 mm |
mounting support | top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit |
marking | CE |
width | 23.6 mm |
depth | 70 mm |
vibration resistance | 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail |
operating altitude | 0...2000 m |
IP degree of protection | IP20 |
local signalling | 1 LED (green) for PWR |
load type | resistive |
absolute accuracy error | +/- 1 % of full scale, +/- 0.2 % of full scale at 25 °C |
shock resistance | 15 gn for 11 ms |
supply voltage limits | 20.4-28.8 V |
type of cable | twisted shielded pairs cable <30 m for input/output circuit |
surge withstand | 1 kV power supply common mode conforming to EN/IEC 61000-4-5, 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5, 1 kV I/O common mode conforming to EN/IEC 61000-4-5, 0.5 kV I/O differential mode conforming to EN/IEC 61000-4-5 |
resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
resistance to fast transients | 1 kV (I/O) conforming to EN/IEC 61000-4-4 |
electromagnetic emission | radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011 |
analogue output type | current: 4...20 mA, current: 0...20 mA, voltage: 0...10 V, voltage: - 10...10 V |
analogue input number | 4 |
sampling duration | 1 ms, 10 ms |
input impedance | <= 50 Ohm current, >= 1 MOhm voltage |
LSB value | 2.44 mV 0...10 Vvoltage, 4.88 mV - 10...10 Vvoltage, 4.88 µA 0...20 mAcurrent, 3.91 µA 4...20 mAcurrent |
resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
storage altitude | 0-3000 m |
analogue output resolution | 11 bits + sign, 12 bits |
temperature drift | +/- 0.01 %FS/°C |
stabilisation time | 1 ms |
load impedance ohmic | 1 kOhm voltage, 300 Ohm current |
output ripple | 20 mV |
non-linearity | +/- 0.2 %FS |
cross talk | <= 1 LSB |
resistance to magnetic fields | 30 A/m conforming to EN/IEC 61000-4-8 |
permissible continuous overload | 13 V, analogue input type: voltage, 40 mA, analogue input type: current |
