Schneider Electric

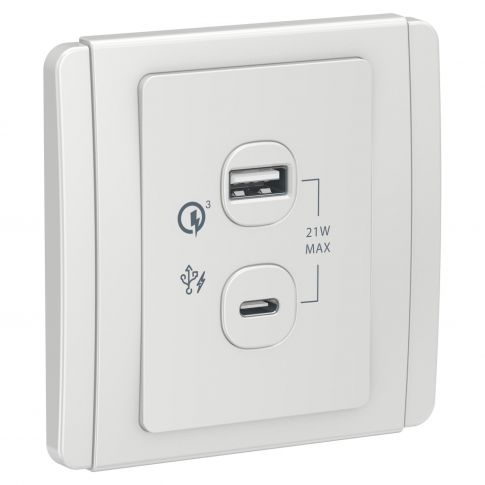

NEO 21W Type A + Type C, PD+QC3.0 USB Charger, White - E3032ACQUSB_WW
Out of stock
SKU
E3032ACQUSB_WW
More Information
| Attribute | Value |
|---|---|
| SKU | E3032ACQUSB_WW |
| range | Neo |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| colour tint | white |
| [Ue] rated operational voltage | 100/240 V 50/60 Hz |
| IP degree of protection | IP20 |
| device mounting | flush |
| embedding depth | 30.3 mm |
| surface finish | glossy and matt |
| material | PC (polycarbonate): grid plate, PC (polycarbonate): housing, PC (polycarbonate): surround, PC (polycarbonate): cover |
| ambient air temperature for storage | -5-60 °C |
| clamping connection capacity | 2.5 mm² for stranded cable(s), 1.5 mm² for stranded cable(s), 2.5 mm² for solid cable(s), 1.5 mm² for solid cable(s) |
| depth | 38.5 mm |
| height | 87 mm |
| width | 87 mm |
| net weight | 0.1127 kg |
| device presentation | mechanism |
| fixing mode | screw |
| standards | IEC 60950-1, IEC 62368-1, IEC 61558-2-16, EN/IEC 60950-1 |
| device application | charger |
| relative humidity | 0-90 % |
| environmental characteristic | liquid soap, alcohol, petrol |
| surface treatment | untreated |
