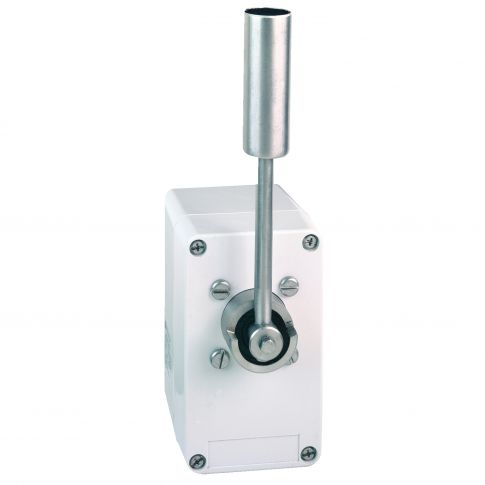

OsiSense XC Special limit switch XCRT - polyester enclosure stainless steel roller with lever - 2C/O - XCRT315
This product is part of the XC Special range, an offer of limit switches.
This limit switch is a device that converts a mechanical motion into an electrical control signal.
It has 2 change over, snap action contacts without positive opening operation and provides switch actuation by conveyor belt.
It has a spring return stainless steel roller with lever and supports lateral approach in 2 directions.
The movement of limit switch operating head is rotary.
It is furnished with screw clamp terminals for electrical connection and 1 entry tapped for PG13.5 cable gland.
It is an IP65 rated product.
It is a switch with a rated operational current of 3A at 240V AC, 0.27A at 250V AC and a conventional enclosed thermal current of 10A.
This limit switch has a fixed type body which is made of polyester.
Its dimensions are 85mm (Width) x 75mm (Depth) x 95mm (Height) and weighs 1.155kg.
It is suitable for conveyor belt shift monitoring applications.
This product is certified by UL.
It meets CSA C22.2 No 14, NF C 79-130, IEC 60947-5-1, IEC 60204-1, EN 60204-1 and EN 60947-5-1 standards.
Special format limit switches for severe environments.
| Attribute | Value |
|---|---|
| SKU | XCRT315 |
| ambient air temperature for storage | -40-70 °C |
| overvoltage category | class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| ambient air temperature for operation | -25-70 °C |
| terminals description ISO n°1 | (13-14)NO, (11-12)NC |
| body type | fixed |
| sensor design | - |
| range of product | OsiSense XC |
| product or component type | Detektor / Sensor |
| net weight | 1.155 kg |
| standards | CSA C22.2 No 14, EN 60947-5-1, IEC 60947-5-1, EN 60204-1, IEC 60204-1, NF C 79-130 |
| mechanical durability | 300000 cycles |
| device short name | XCRT |
| range | Limit Switch |
| short-circuit protection | 10 A cartridge fuse, type gG |
| contact operation | snap action |
| positive opening | without |
| type of approach | lateral approach, 2 directions |
| minimum actuation speed | 0.01 m/min |
| contacts insulation form | Za |
| electrical connection | screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| tripping angle | 10 ° for fault signalling, 18 ° for stopping of the conveyor belt |
| height | 95-95 mm |
| compatibility code | XCRT |
| width | 85 mm |
| depth | 75 mm |
| vibration resistance | 9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| electrical durability | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| material | polyester |
| fixing mode | by the body |
| cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300 |
| [Ui] rated insulation voltage | 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14, 500 V (pollution degree 3) conforming to VDE 0110 |
| protective treatment | TC |
| contacts type and composition | 2 C/O |
| type of operator | spring return roller stainless steel with lever |
| shock resistance | 30 gn for 18 ms conforming to IEC 60068-2-27 |
| series name | special format |
| head type | rotary head |
| switch actuation | by conveyor belt |
| movement of operating head | rotary |
| product specific application | for conveyor belt shift monitoring |
| number of poles | 2 |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| body material | polyester |
| number of steps | 2 |
| minimum torque for tripping | 1 N.m |
| maximum displacement angle | -70 °, 70 ° |
| contact block per direction [control circuit] | 2 per direction |
