Schneider Electric

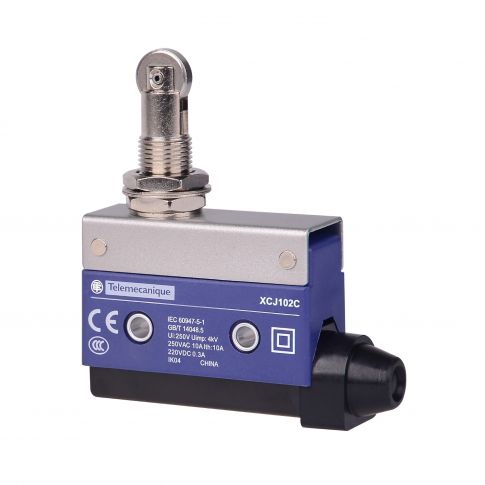

OsiSense XC Special Steel roller plunger, horizontal actuation - XCJ102C
Out of stock
SKU
XCJ102C
More Information
| Attribute | Value |
|---|---|
| SKU | XCJ102C |
| ambient air temperature for storage | -40-70 °C |
| ambient air temperature for operation | -25-70 °C |
| electrical shock protection class | class II conforming to EN/IEC 60947-5-1 |
| terminals description ISO n°1 | (NO-NC-C)OF |
| body type | fixed |
| range of product | OsiSense XC |
| product or component type | Detektor / Sensor |
| net weight | 0.093 kg |
| standards | IEC 60947-5-1, GB 14048.5 |
| mechanical durability | 10000000 cycles |
| device short name | XCJ |
| range | Limit Switch |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60664 |
| contact operation | snap action |
| positive opening | without |
| type of approach | lateral approach, 1 direction |
| minimum actuation speed | 0.01 mm/s |
| contacts insulation form | C |
| electrical connection | screw-clamp terminals |
| contact code designation | A300, AC (Ue = 240 V), Ie = 10 A, Ithe = 10 A conforming to IEC 60947-5-1, R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1 |
| height | 79-79 mm |
| compatibility code | XCJ |
| marking | CE, CCC |
| width | 22 mm |
| depth | 70 mm |
| vibration resistance | +/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| electrical durability | 800000 cycles, AC, 10 A, 220 V |
| material | plastic and metal |
| fixing mode | by the body |
| cable entry | 1 flexible rubber cable gland, cable outer diameter: 8.5-10.5 mm |
| maximum operating rate | 120 cyc/mn |
| type of operator | spring return roller plunger stainless steel |
| shock resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| series name | basic |
| head type | plunger head |
| switch actuation | on end |
| movement of operating head | linear |
| product specific application | light to medium duty |
| maximum actuation speed | 0.5 m/s |
| maximum force for tripping | 4 N |
| minimum release force | 0.98 N |
| number of poles | 1 |
| maximum resistance across terminals | 25 MOhm |
