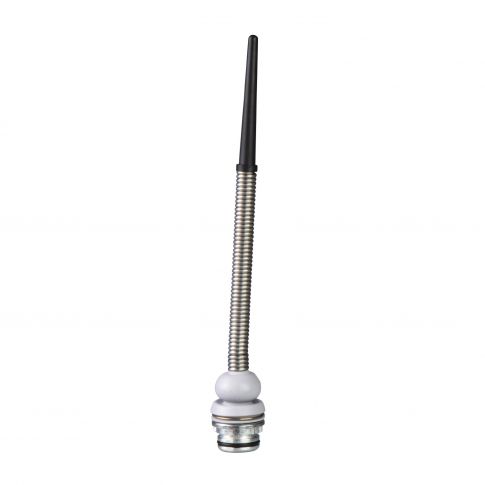

OsiSense XC Standard limit switch head ZCE - spring rod lever termoplastic end nitrile boot - ZCE07
This product is part of the XC Standard range, an offer of limit switches.
This limit switch head provides switch actuation by any moving any part without positive opening operation.
The metal spring rod spring return (with nitrile boot and thermoplastic end) and supports multidirectional approach.
The movement of limit switch operating head is multidirectional.
It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc.
It is compatible with XCKP, XCKT, XCMD and XCKD limit switches, and various ZC bodies.
Limit switches for contact sensing of inflexible objects.
High quality of products and worldwide availability guarantee in a short delivery time.
A comprehensive offer of contacts for a simpler and safer machine design.
Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
| Attribute | Value |
|---|---|
| SKU | ZCE07 |
| ambient air temperature for storage | -40-70 °C |
| ambient air temperature for operation | -25-70 °C |
| environmental characteristic | standard environment |
| range of product | Telemecanique Limit switches XC Standard |
| product or component type | Detektor / Sensor |
| device short name | ZCE |
| range | Limit Switch |
| product compatibility | XCKT, XCMD, XCKP, XCKD |
| positive opening | without |
| type of approach | multi-directional approach |
| compatibility code | ZCE |
| type of operator | spring rod spring return metal (with nitrile boot and thermoplastic end) |
| series name | standard format |
| head type | multi-directional head |
| switch actuation | by any moving part |
| movement of operating head | multi-directional |
| associated body | ZCP21M12, ZCP21, ZCD37, ZCP26, ZCT28N12, ZCP29, ZCP39, ZCT25N12, ZCT27P16, ZCT28P16, ZCP29M12, ZCT25G11, ZCD39, ZCP25, ZCP35, ZCT26P16, ZCD26, ZCD21M12, ZCT25P16, ZCT26G11, ZCP28, ZCP27, ZCT21N12, ZCD25, ZCP37, ZCD21, ZCT26N12, ZCT27N12, ZCT28G11, ZCT21G11, ZCD31, ZCT21P16, ZCD28, ZCD29M12, ZCP31, ZCD29, ZCT27G11, ZCD35, ZCD27, ZCMD41L5, ZCMD39L2, ZCMD69C12, ZCMD61C12, ZCMD25L5, ZCMD39L5, ZCMD37L5, ZCMD81L5, ZCMD25L2, ZCMD21M12, ZCMD21L08R12, ZCMD21L08U78, ZCMD41L1, ZCMD37L1, ZCMD37L2, ZCMD41L2, ZCMD21C12, ZCMD21L1, ZCMD61M12, ZCMD25L1, ZCMD39L1, ZCMD81L2, ZCMD21L5, ZCMD81L1, ZCMD29L1, ZCMD29L5, ZCMD21L2, ZCMD29C12, ZCMD29L2 |
