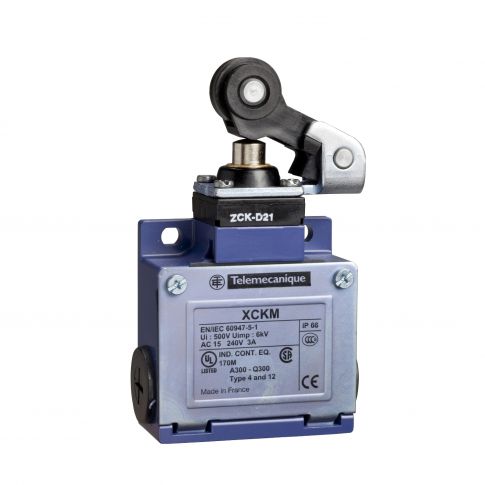

OsiSense XC Standard limit switch XCKM - thermoplastic roller lever plunger - 1NC+1NO - slow - M20 - XCKM521H29
Out of stock
SKU
XCKM521H29
More Information
| Attribute | Value |
|---|---|
| SKU | XCKM521H29 |
| product certifications | CCC, CSA, UL |
| ambient air temperature for storage | -40-70 °C |
| ambient air temperature for operation | -25-70 °C |
| electrical shock protection class | class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| terminals description ISO n°1 | (13-14)NO, (21-22)NC |
| body type | fixed |
| range of product | Telemecanique Limit switches XC Standard |
| product or component type | Detektor / Sensor |
| net weight | 0.3 kg |
| standards | CSA C22.2 No 14, EN 60947-5-1, IEC 60947-5-1, UL 508, EN 60204-1, IEC 60204-1 |
| mechanical durability | 20000000 cycles |
| device short name | XCKM |
| range | Limit Switch |
| IK degree of protection | IK05 conforming to EN 50102 |
| short-circuit protection | 10 A cartridge fuse, type gG |
| contact operation | slow-break, break before make |
| positive opening | with |
| type of approach | lateral approach, 1 direction |
| minimum actuation speed | 6 m/min |
| contacts insulation form | Zb |
| electrical connection | screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| height | 64-64 mm |
| compatibility code | XCKM |
| width | 64 mm |
| depth | 30 mm |
| vibration resistance | 25 gn (f= 10-500 Hz) conforming to EN/IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to EN/IEC 60529 |
| electrical durability | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| material | metal |
| fixing mode | by the body |
| device presentation | complete product |
| cable entry | 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| [Ui] rated insulation voltage | 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14 |
| protective treatment | TC |
| contacts type and composition | 1 NC + 1 NO |
| type of operator | spring return roller lever plunger thermoplastic |
| shock resistance | 50 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| series name | standard format |
| [Ithe] conventional enclosed thermal current | 10 A AC |
| head type | plunger head |
| switch actuation | by 30° cam |
| movement of operating head | linear |
| maximum actuation speed | 1.5 m/s |
| number of poles | 2 |
| maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| specific application | classic |
| positive opening minimum force | 24 N |
| body material | zamak |
| minimum force for tripping | 8 N |
| number of steps | 1 |
