Schneider Electric
Osisense XS & XT inductive sensor XS8 40x40x117 - PBT - Sn20 mm - 12..48VDC - terminals - XS8C4A1PCG13
Out of stock
SKU
XS8C4A1PCG13
Details
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects.
The advantages of inductive detection are numerous, no physical contact with the object to be detected.
Thus avoiding wear and enabling detection of fragile or freshly painted objects.
High operating rates.
Fast response.
Excellent resistance to industrial environments (robust products, fully encapsulated in resin).

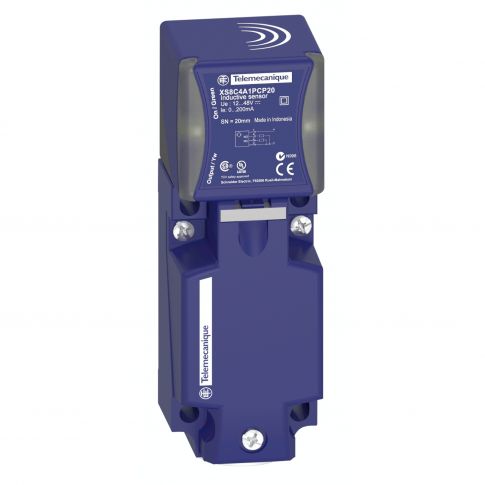

This product is a 40mm x 40mm x 117mm format sensor, flush mountable in metal.
It features a plastic case with a plug-in 5 position turret head and a PG 13.5 cable entry.
It has a sensing distance of 20mm.
Four-wire, DC supply, 12V to 48V with protection against polarity, NO and NC function, PNP discrete output.
More Information
| Attribute | Value |
|---|---|
| SKU | XS8C4A1PCG13 |
| product certifications | CCC, CSA, UL, TÜV, E2 |
| ambient air temperature for storage | -40-85 °C |
| ambient air temperature for operation | -25-70 °C |
| safety reliability data | MTTFd = 1546 years, PFHd = 7.4E-8 1/h, SFF = 92 %, DC = 75 % with appropriate safety controller |
| body type | fixed |
| maximum delay response | 1.2 ms |
| maximum delay recovery | 1.8 ms |
| sensor type | inductive proximity sensor |
| sensor design | form 40 x 40 x 117 |
| wiring technique | 4-wire |
| range of product | Telemecanique Inductive proximity sensors XS |
| product or component type | Detektor / Sensor |
| current consumption | 0...15 mA no-load |
| net weight | 0.244 kg |
| range | Proximity |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| electrical connection | screw-clamp terminals, 4 x 1.5 mm² |
| repeat accuracy | <= 3% of Sr |
| discrete output type | PNP |
| maximum delay first up | 7.5 ms |
| height | 40 mm |
| status LED | output state: 1 LED (yellow), supply on: 1 LED (green) |
| marking | CE |
| width | 117 mm |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050 |
| device application | mobile equipment |
| material | plastic |
| shock resistance | 50 gn for 11 ms conforming to EN 60068-2-27 |
| detection face | 5 positions turret head |
| series name | general purpose |
| supply voltage limits | 10-58 V DC |
| enclosure material | PBT |
| length | 40 mm |
| switching frequency | <= 300 Hz |
| switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| sensing range | > 15...40 mm |
| differential travel | 3...15% of Sr |
| discrete output function | 1 NO + 1 NC |
| type of output signal | discrete |
| [Sn] nominal sensing distance | 20 mm |
| detector flush mounting acceptance | flush mountable |
| operating zone | 0-16 mm |
| maximum voltage drop | <2 V (closed) |
| front material | PBT |
| sensor name | XS8 |
| output circuit type | DC |
| size | 117 mm |
| cable entry number | 1 tapped entry for Pg 13.5 cable gland |
| safety level | SIL 2 conforming to EN/IEC 61508, PL = d conforming to EN/ISO 13849-1, SILCL 2 conforming to IEC 62061 |
